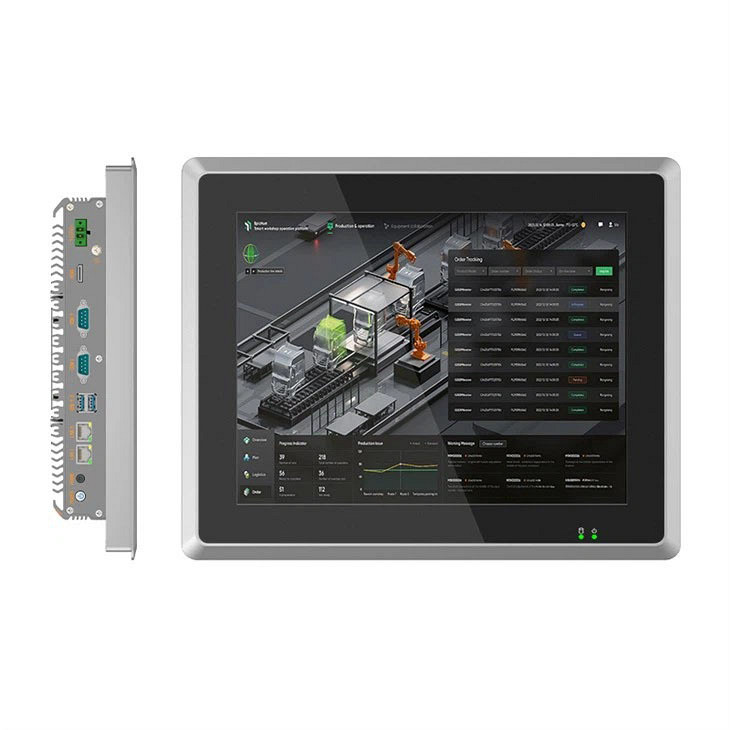

10'' INDUSTRIAL TOUCHSCREEN INDUPULSE IPC-10A

Certification      CCC,CE, FCC ,ISO9001,BIS
Cooling system    Fanless cooling
Dimensions    281x228x56.8mm
Cutout dimension 268x213mm
Front bezel : Tempered glass
casting aluminum
Mounting    VESA/Panel mount
OS support      Microsoft ® Windows 11 PRO,64bit
 Weight (Net)    3.5 kg
 Weight (Gross)    4 kg
Package size     38 x 27 x 13 (cm)
Power consumption 25W

Display type     IPS LCD screen
Display size     212.3x159.5 mm
Resolution    1024x768
Max. colors      16.7 M
Luminance cd/m2    250
Viewing angle (H/V°)     178°/178°
Backlight life      50000 hrs
Contrast ratio      500:1
Aspect ratio    4:3
Lifespan      36 million touches at single point
Touch type      Capacitive touch screen
Response     5 ms

CPU Intel® Celeron I7-7500U processor
Memory  16GB DDR3
Storage      512GB SSD

1*MINI PCI-E
2*COM  (RS485/232)
1*DC lock phoenix terminal 12 V
1*HDMI
2*USB 3.0
2*RJ45 with 1000 Base-T
1*3.5mm audio

Humidity    10~ 95% RH @ 40°C, non-condensing
Ingress Protection      Front panel: IP65
Operating Temperature     -10 ~ 55°C
Storage Temperature     -30 ~ 70°C

Adaptor  (DC 12V)  (cable 1 meter)
Power plug ( cable 1.2 meter )
Default wall mounting bracket
Panel cut-out: 270 x 215mm
