ANGLE BRACKET FIXED 45
212010/7

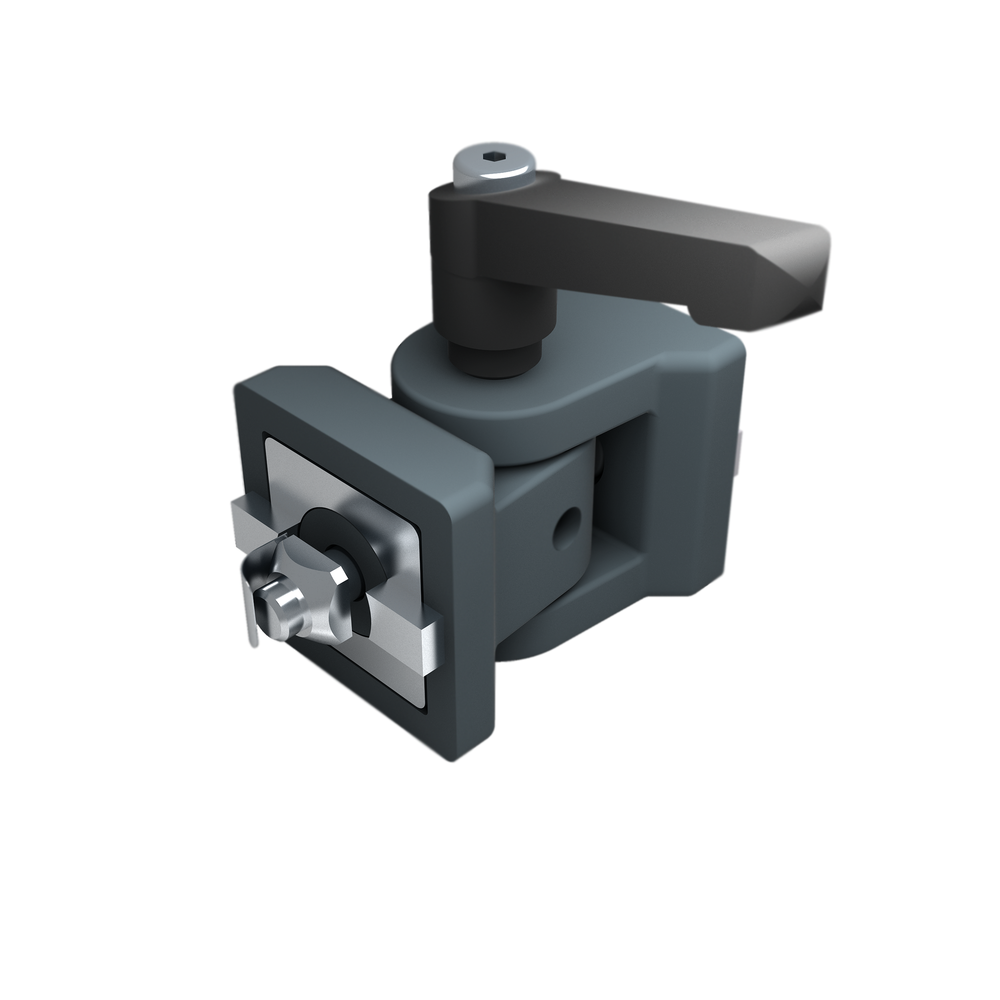

Swivel link 45 with M8 nut for secure mounting of heavy swing doors and quick-adjust add-ons in aluminum frames.
Login for partner discounts.
Create an account
but
Login
Add to the popular
Technical data/items supplied
- Aluminium, Pressure die-casting, powder-coated, grey
- With low-friction sliding bearing
- With fastening material steel, zinc plated
- Anti-rotation device AL GD
- Load Fmax 1500 N
- Weight = 0.358 kg/piece
Applications
- Heavy duty swing doors, storage of moving parts
- Clamping lever for positioning of add-on parts
- Fastening of quick-to-adjust components such as gripping shells, measuring devices
- For heavy loads use multiple hinges

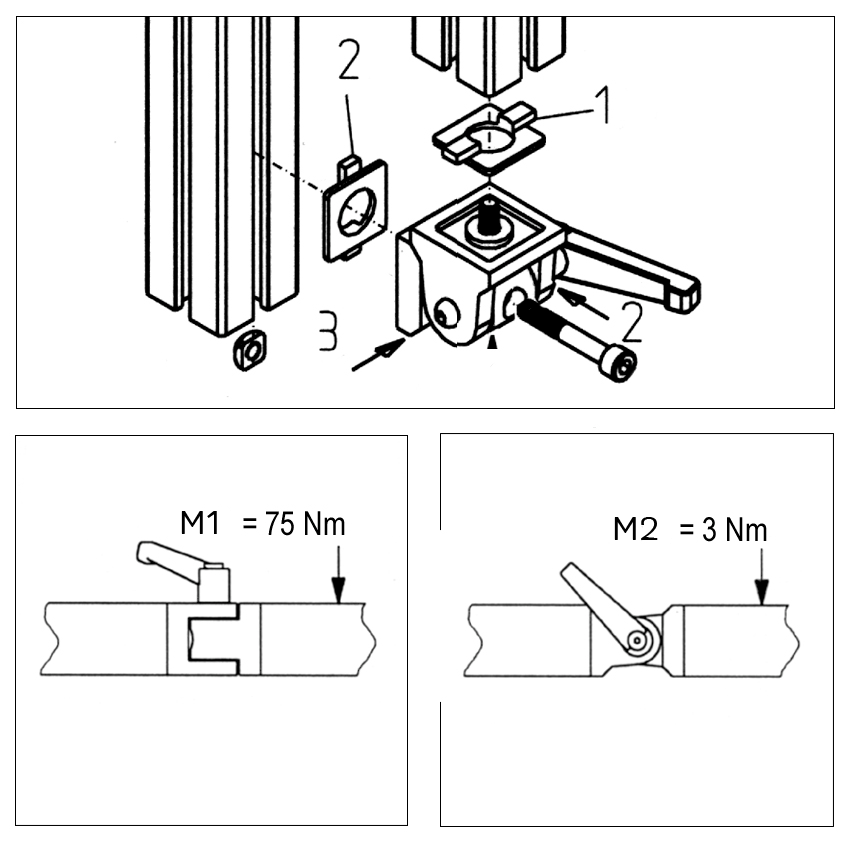

Assembly
- 1: Joint half with pre-mounted screw to desired position fasten
- 2: Fix with screws included
- 3: Tighten clamping lever
