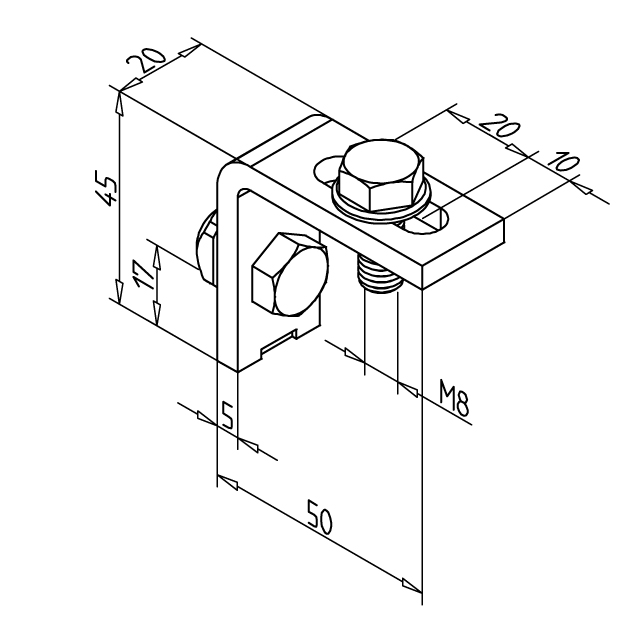

Guard unit fixing angle 19
211399/0
Guard unit fixing angle 19 for fastening guard units from clamping profiles 32x32, 45x32, or standard profiles. Supports attachment at any angle.
Login for partner discounts.
Create an account
but
Login
Add to the popular
Technical data/items supplied
- Steel, galvanized
- With fastening material steel, zinc plated
- Weight = 0.089 kg/piece
Assembly
- Spread screw threads M8 x 20 into the profile ending of the guard unit

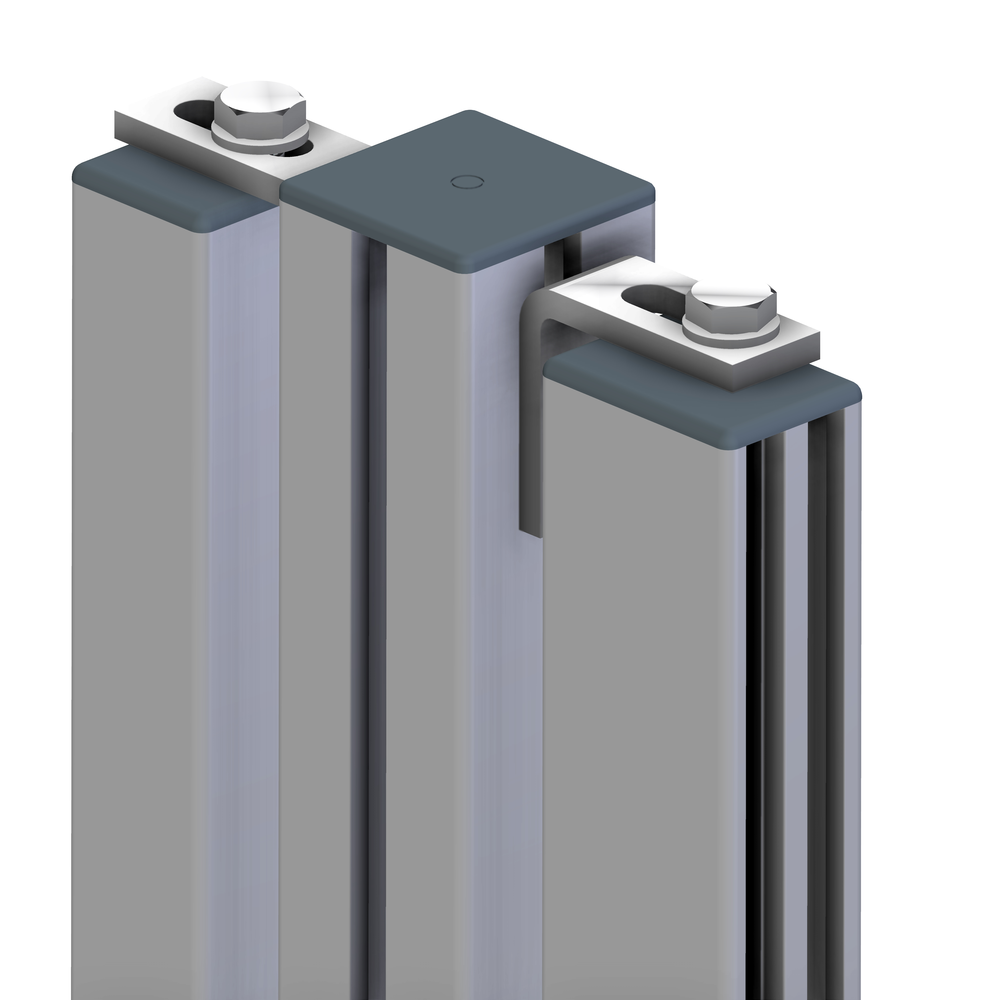

- Install guard unit suspension on posts
- Fix guard with screws of fastening kit
- Alternatively: For very fast assembly, the lower two threads can be fitted with the retaining pin 25 part no. 211758/0. Screw fastening only on the two upper threads

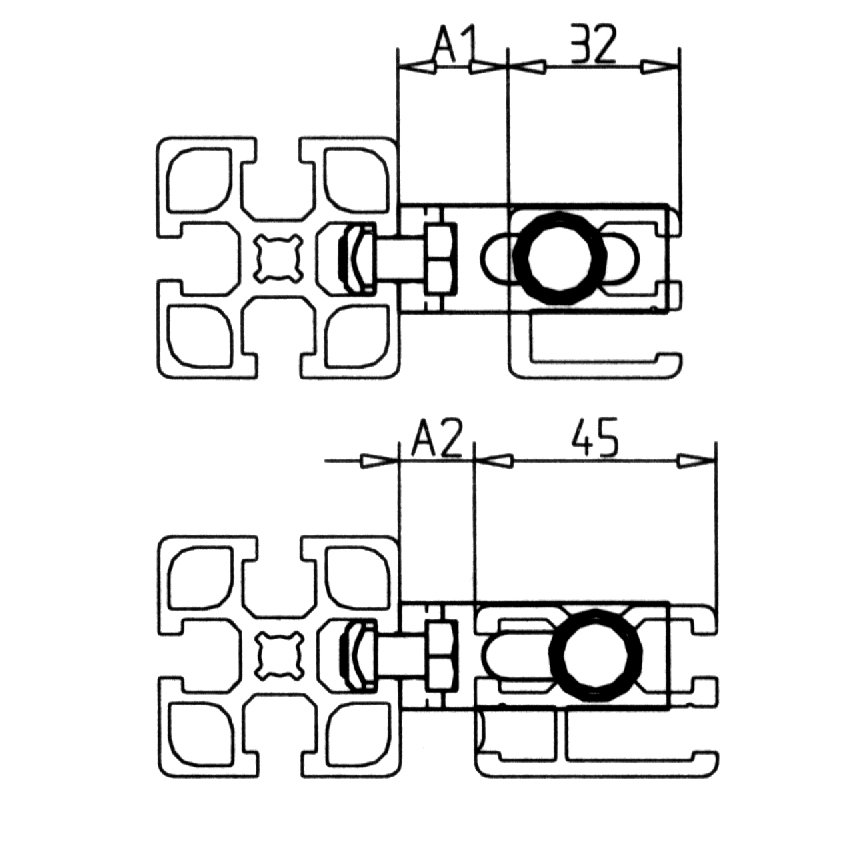

- A1 = 10.5 mm - 30.5 mm A2 = 10.5 mm - 17.5 mm
