MOTOR MOUNTING KIT 45 D20
295031/0
Login for partner discounts.
Create an account
but
Login
Add to the popular

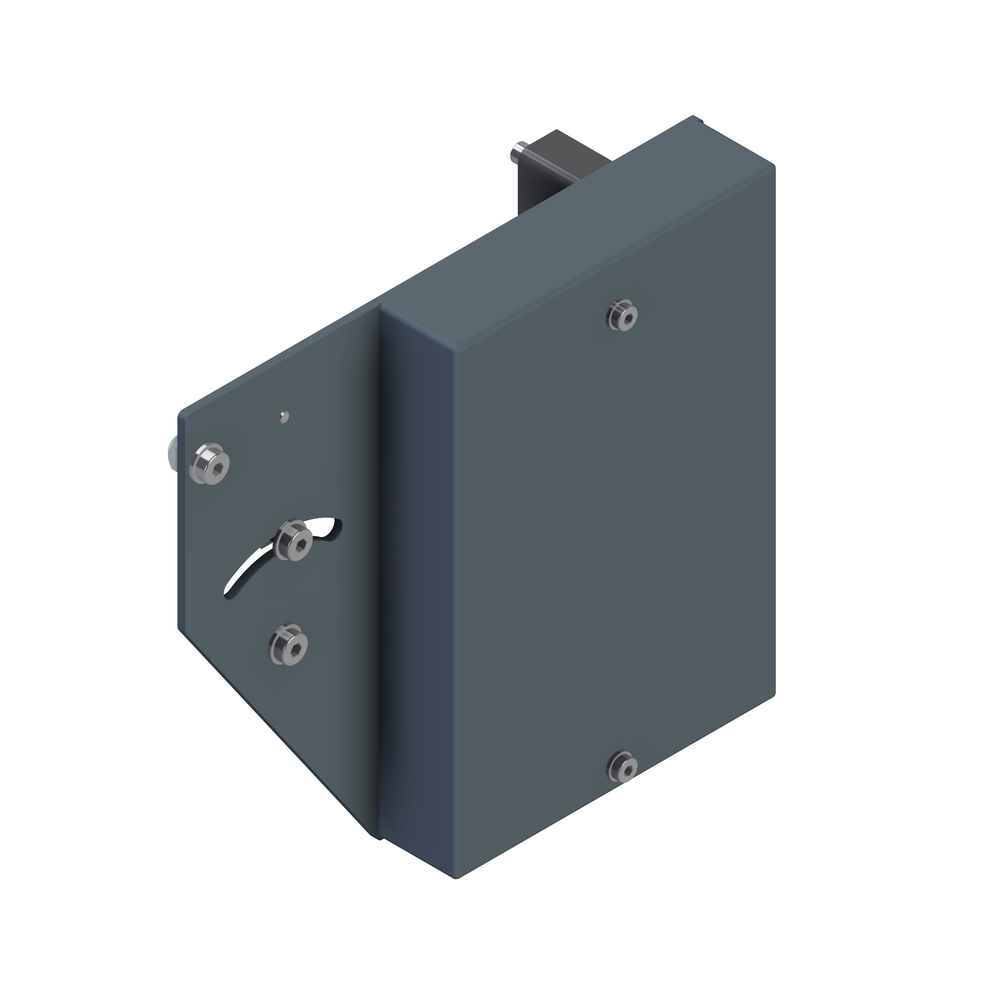

Technical data/items supplied
- With fastening material steel, zinc plated
- Motor plate and cover, steel, powder coated, grey
- Bearing housing with self-aligning bearing

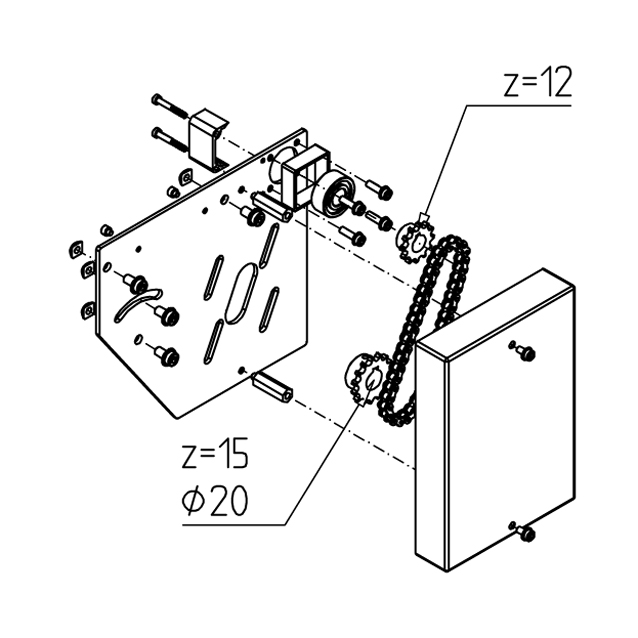

- 2 sprockets with drive chain, 1 sprocket drilled for motor shaft diameter Ø 20 mm
- Weight = 3.344 kg/piece
Applications

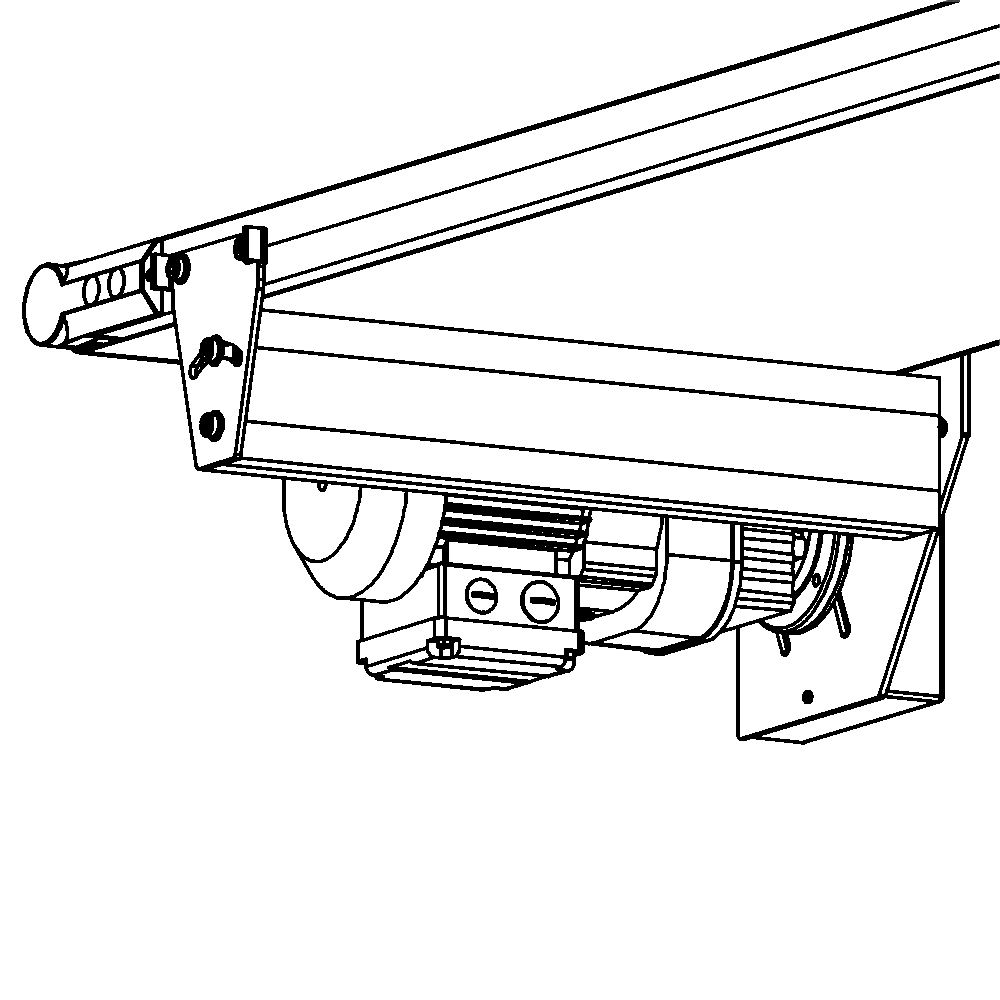

- Belt-conveyors made of MiniTec aluminium profiles
- Suitable for mounting spur gear motors with flange diameter Ø 120 mm
- Fitting belt driving cylinder part no. 295022/0 and belt tensioning cylinder part no. 210994/1
Assembly
- Screw the flange plate to the base frame, install the bearing housing with the self-aligning bearing
- Insert belt driving cylinder, on the opposite side, eg. conveyor bearing part no. 21.0993/0 use
- Mount engine, install chain wheels and tighten the chain
- Fit the cover
- Please note our design suggestion if the conveyor belt is to be used without base frame
