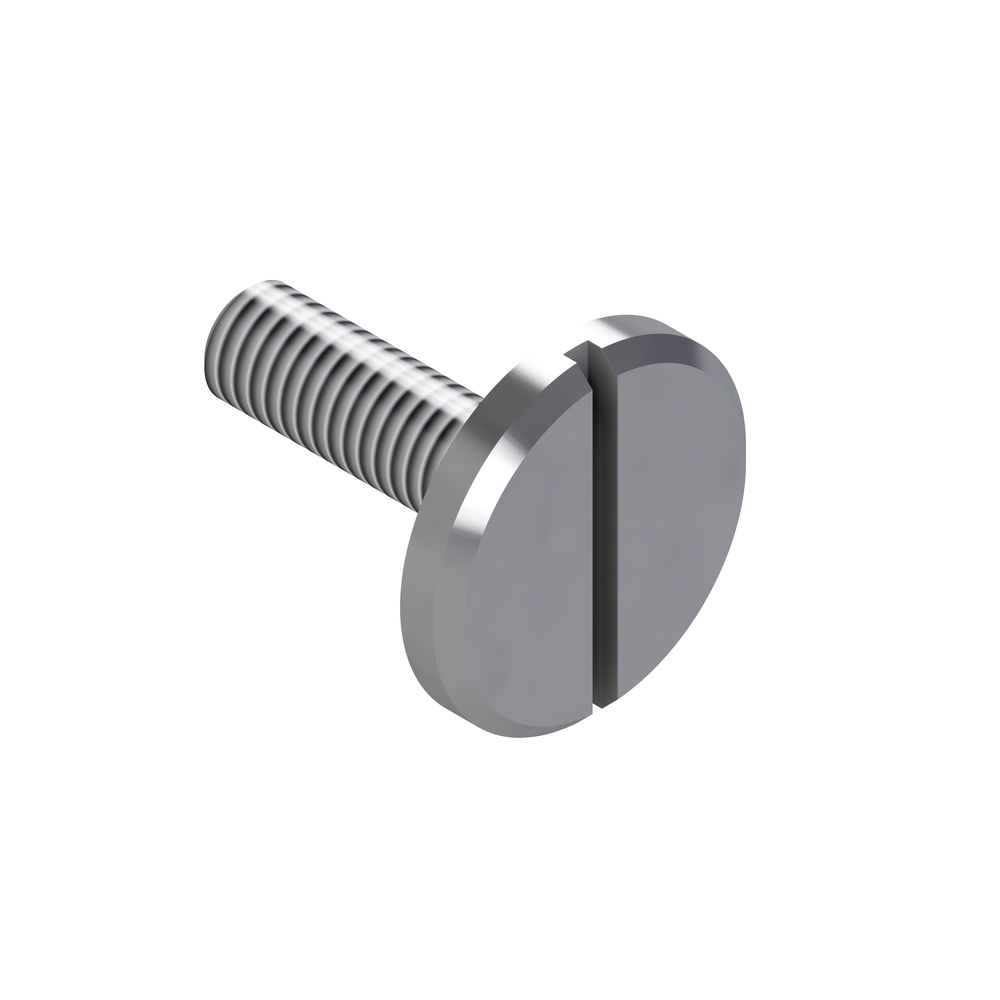

Pan head screw M6x16
211246/0
Pan head screw M6 x 16 made of steel for strong and reliable fastening of aluminium profiles and components.
Login for partner discounts.
Create an account
but
Login
Add to the popular
Technical data/items supplied
- Steel, galvanized
- Thread (d) : M 6
- Length (l) : 16 mm
- Head diameter Ø 20 mm
- Weight = 0.009 kg/piece
Applications

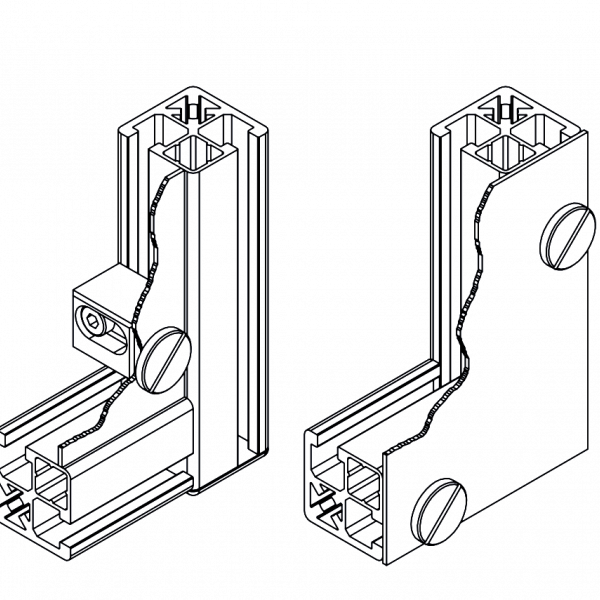

- Assembly of surface elements directly on profile groove
- In connection with screw blocks, multiblocks and thread socket
Assembly
- Pre-drill surface elements: Ø 6.5 mm
- Recommended grid dimensions: approx. 150 mm
- Edge distance: see screw block 32 and multi-block
