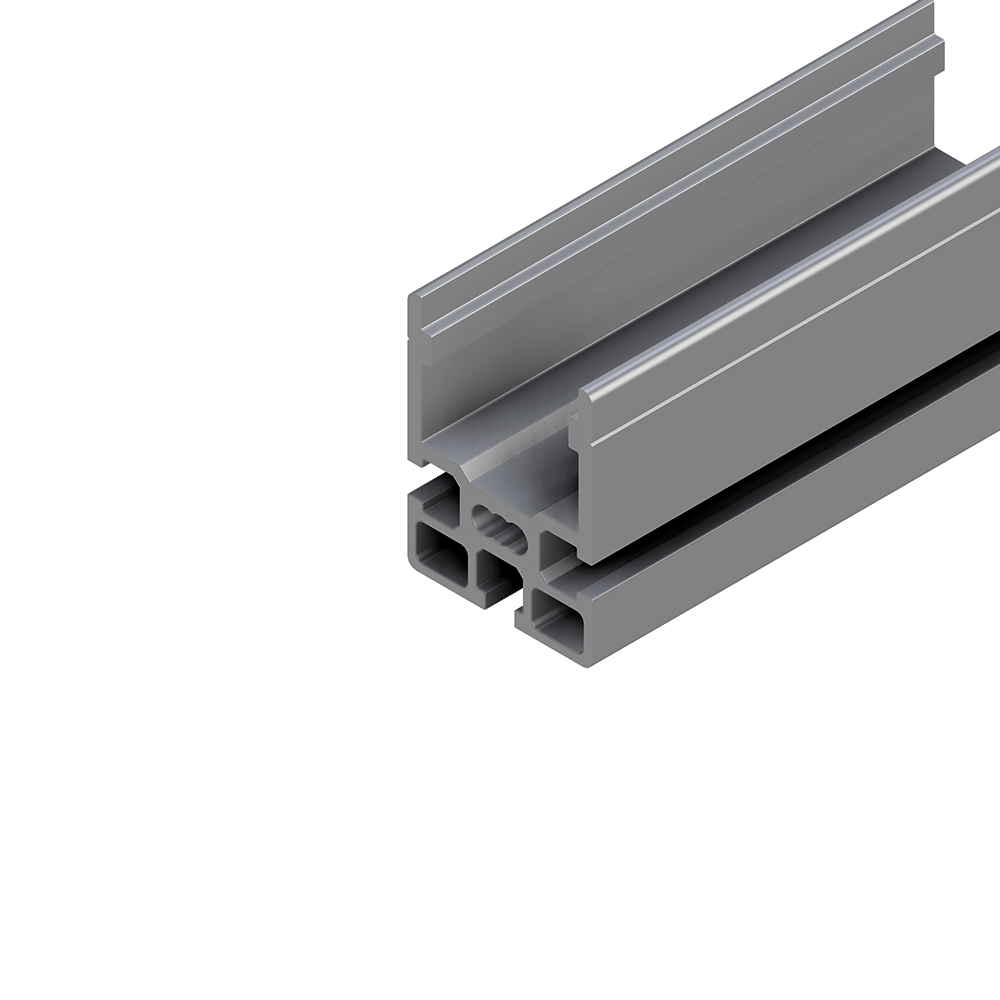

Profile height adjustment
201143/0
Alu profile for height-adjustable workstations. Modular aluminium profile system for ergonomic industrial setups.
Make a list of different variations of this product:
Prosimo preverite polja za pravilen vnos mere?
List of selected items:
- You do not have the products added right now -
For additional machining of profiles (holes, threads, countersinking holes, angle cutting, milling, etc.), please contact us at prodaja@minitec.si.
Login for partner discounts.
Create an account
but
Login
Add to the popular
You can add to the product:

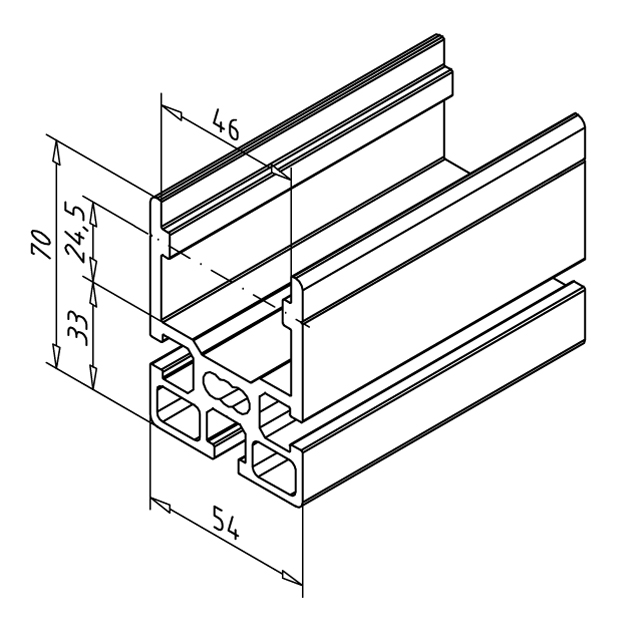

Technical data/items supplied
- Aluminium, extruded, anodized E6/EV1
- Ix = 40.251 cm4
- Iy = 39.822 cm4
- wx = 9.624 cm3
- wy = 14.749 cm3
- IT = 80.08 cm4
- Weight = 2.940 kg/m
- Bar length = 6 m
- Packing unit = 24 m
Applications

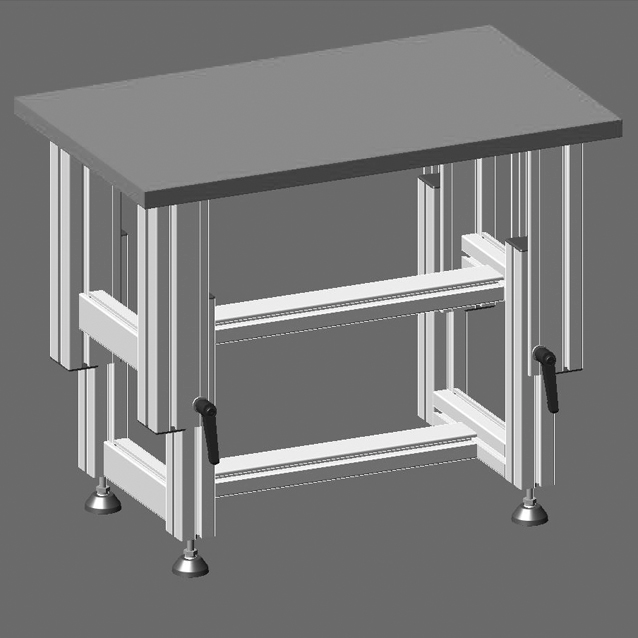

- Height adjustment
- Telescopic applications
Assembly
- For clamping or snap-in on the profile in the respective process
