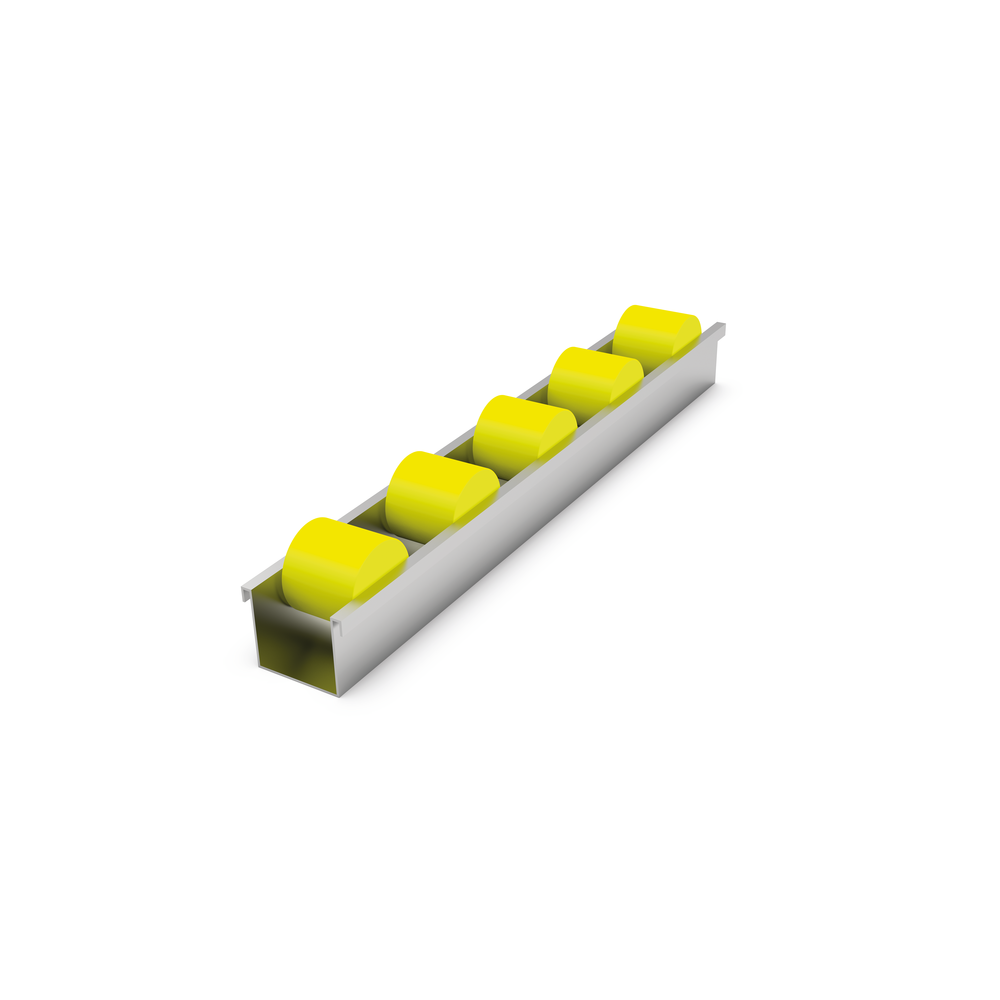

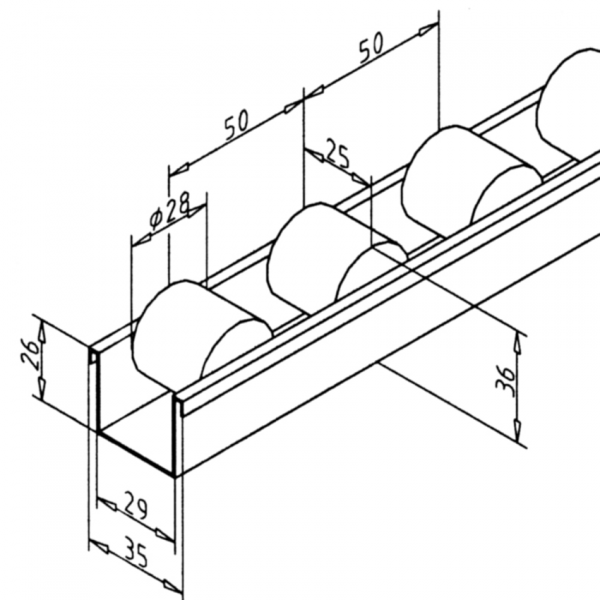

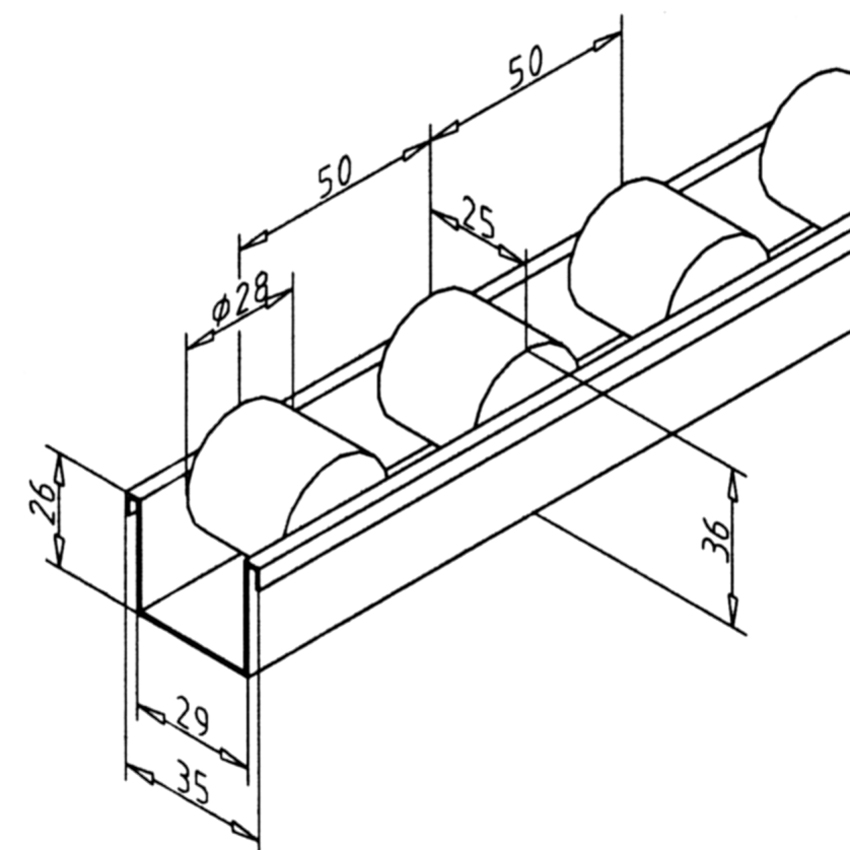

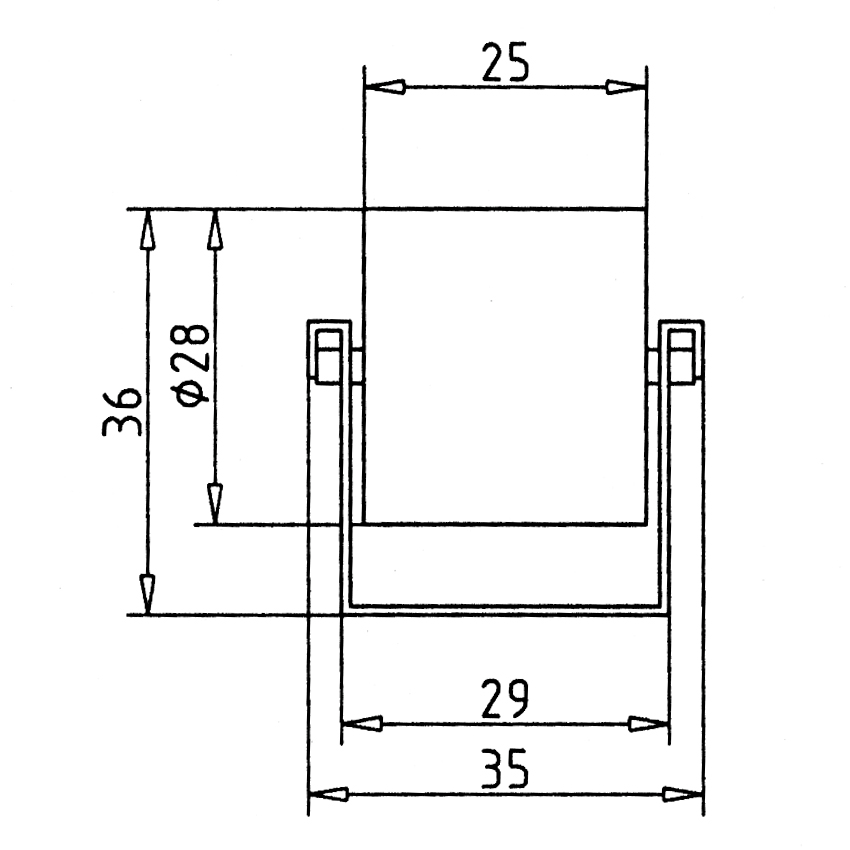

Roller strip with cylindrical rollers
320550/0
Roller strip with cylindrical rollers provides fast and effortless sliding of materials, reduces manual handling effort, and boosts process efficiency.
Login for partner discounts.
Create an account
but
Login
Add to the popular
You can add to the product:
Technical data/items supplied
- Length according to costumers specification
- Max. length 6 m
- Division 50 mm
- Supporting profile: Steel, zinc plated
- Roller colour: yellow
- Weight = 0.595 kg/m
Applications
- The rollers can be used over a temperature range from -30°C up to +100°C
- part no. 320555/0 highly conductive roller to avoid electrostatic charge. Roller colour: black

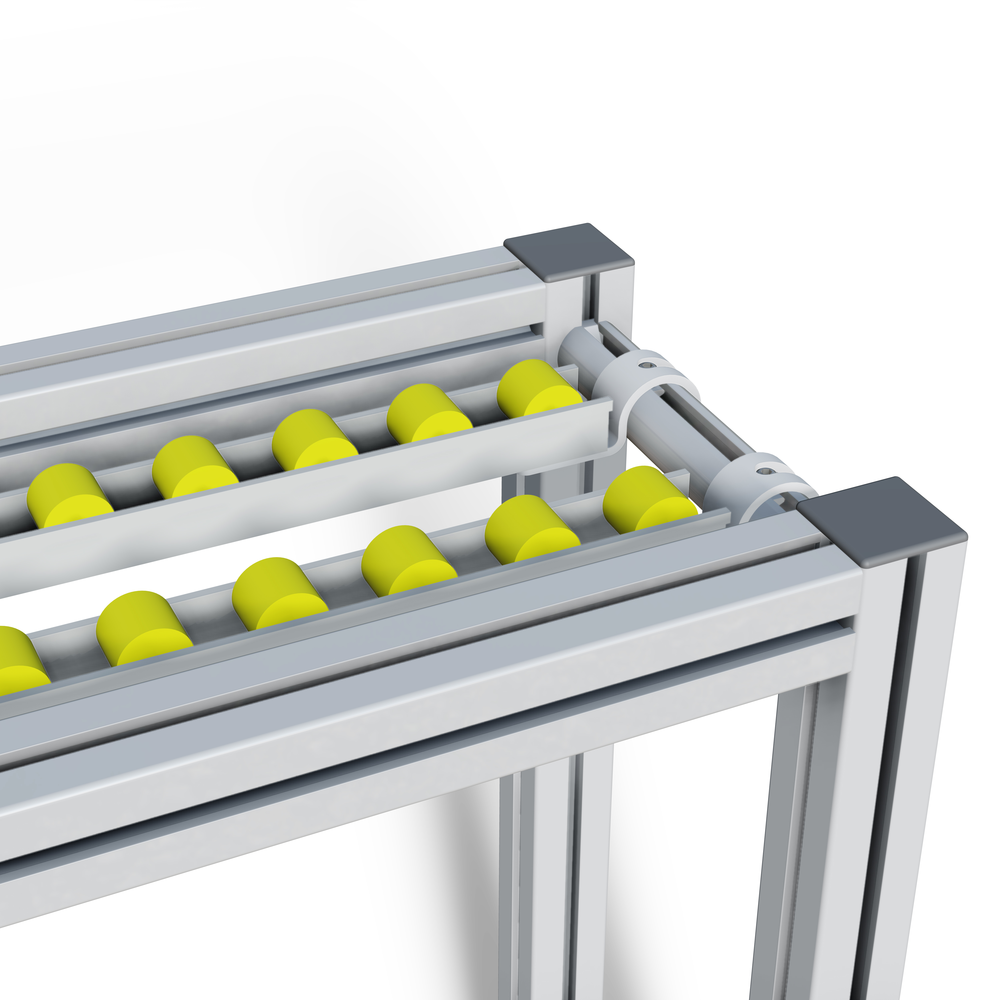

- For longer roller strips or higher load, we recommend:
- inserting lengthwise or crosswise construction profiles underneath for support

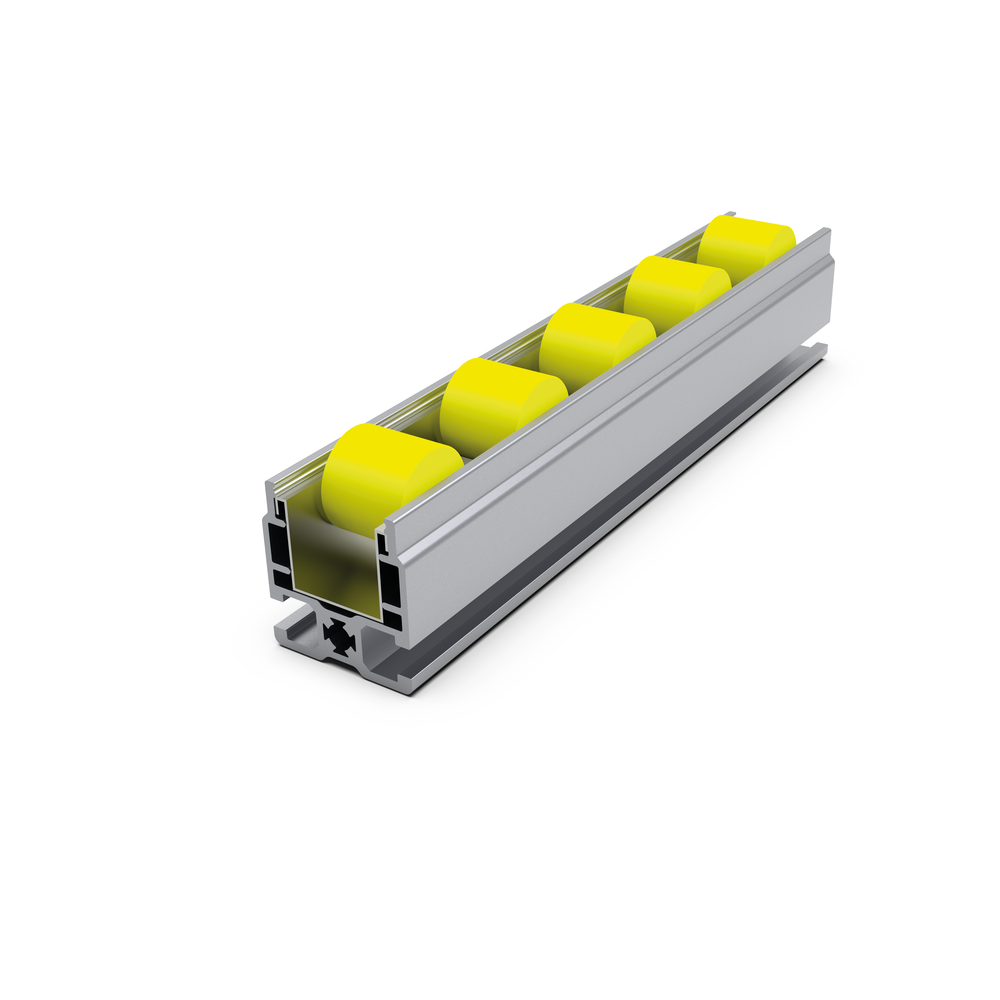

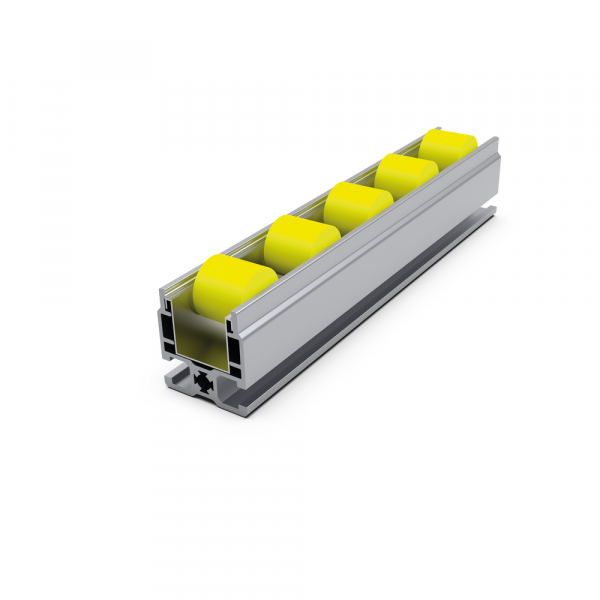

- inserting the roller strip into the 45 FRS profile Part no.. 201152/0 it is then also possible to cover the spaces between the rollers, a system height (SH) of 54 mm is then reached
Related items
In stock in the central warehouse.
Delivery 2-4 weeks.
38,45 €/m
(incl. VAT)
31,52 €/m
(excl. VAT)
320586/0
Return stop
In stock in the central warehouse.
Delivery 2-4 weeks.
1,79 €
(incl. VAT)
1,47 €
(excl. VAT)
320691/0
Slide profil - FRS
In stock in the central warehouse.
Delivery 2-4 weeks.
24,75 €/m
(incl. VAT)
20,29 €/m
(excl. VAT)
320661/0
Cover 45 FRS - S
In stock in the central warehouse.
Delivery 2-4 weeks.
1,99 €
(incl. VAT)
1,63 €
(excl. VAT)
210940/0
Roller carrier backing pads
In stock in the central warehouse.
Delivery 2-4 weeks.
0,56 €
(incl. VAT)
0,46 €
(excl. VAT)
320683/0
Roller element 50 D28-Z-FRS
In stock in the central warehouse.
Delivery 2-4 weeks.
2,94 €
(incl. VAT)
2,41 €
(excl. VAT)
320688/0
Roller element 50 D9-5R-FRS
In stock in the central warehouse.
Delivery 2-4 weeks.
7,80 €
(incl. VAT)
6,39 €
(excl. VAT)
320554/0
Bracket, roller strip F
In stock in the central warehouse.
Delivery 2-4 weeks.
4,23 €
(incl. VAT)
3,47 €
(excl. VAT)
320574/0

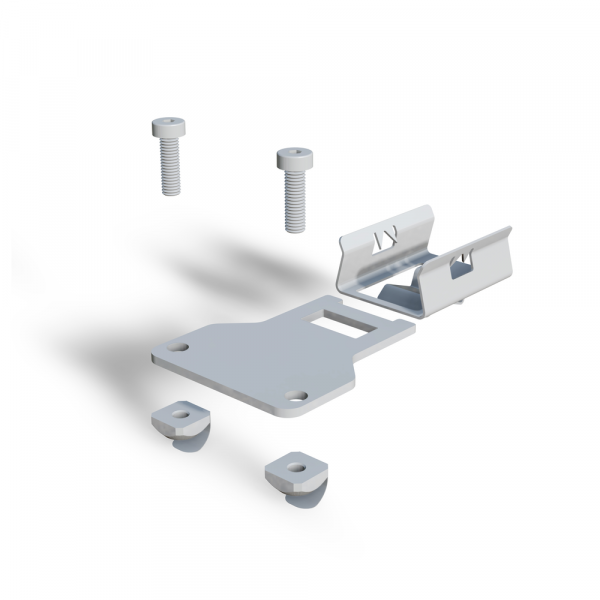

Roller strip fastening
