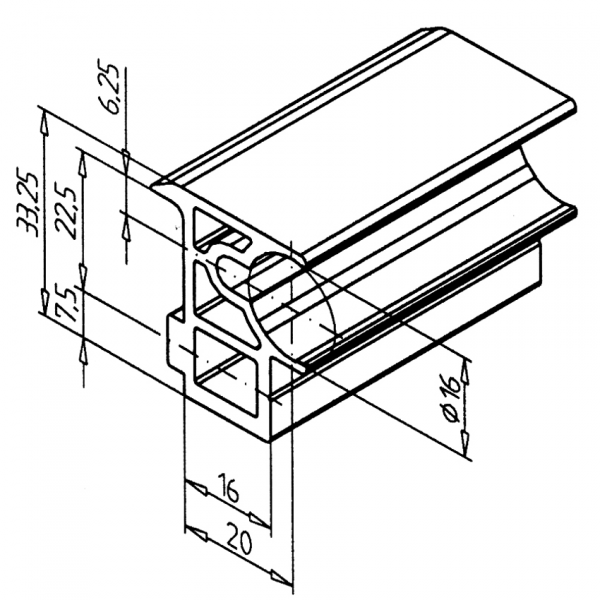

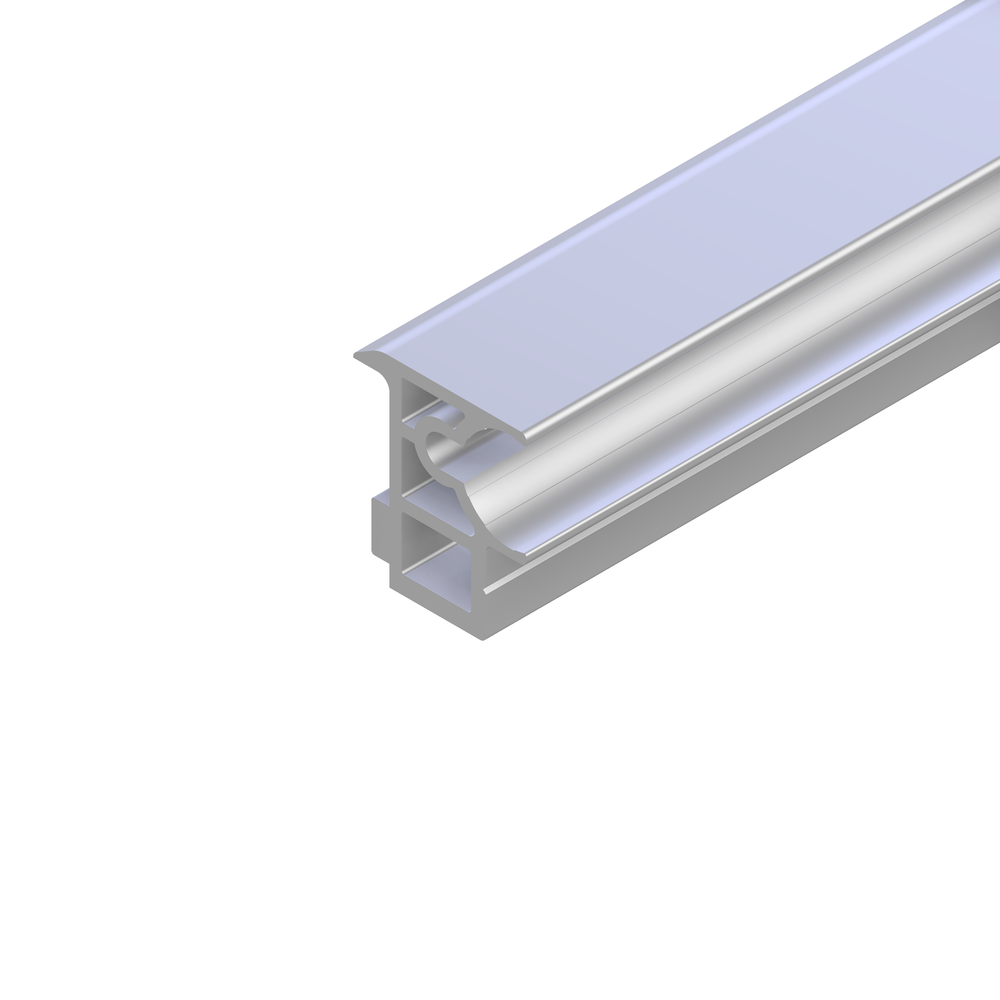

Shaft supporting profile LR 16
280019/0
Aluminum profile for LR 16 shaft support for stable guidance and support in linear guides.
Login for partner discounts.
Create an account
but
Login
Add to the popular
Technical data/items supplied
- Aluminium, extruded, anodized E6/EV1

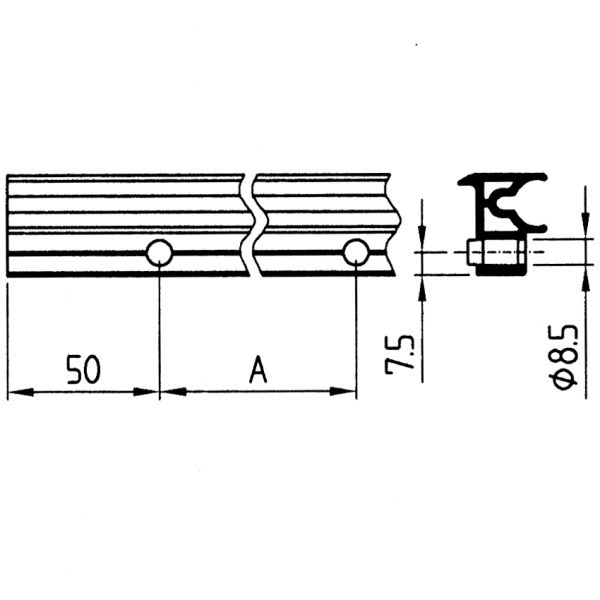

- Design with bore at part no. 280019/1
grid dimension A = 250 mm - Weight = 0.845 kg/m
- Bar length = 6 m
Applications
- MiniTec linear guide LR16
Assembly
- Bore ø 8.5 in the shaft supporting profile
- Recommended distance: 50 mm from the edge, then approximately every 200 - 300 mm
- Fasten to the support profile using cylinder screw M8 x 30 and sliding nut M8
- Hammer the shaft into the rod holder profile with a plastic hammer
Related items
In stock in the central warehouse.
Delivery 2-4 weeks.
33,49 €/m
(incl. VAT)
27,45 €/m
(excl. VAT)
