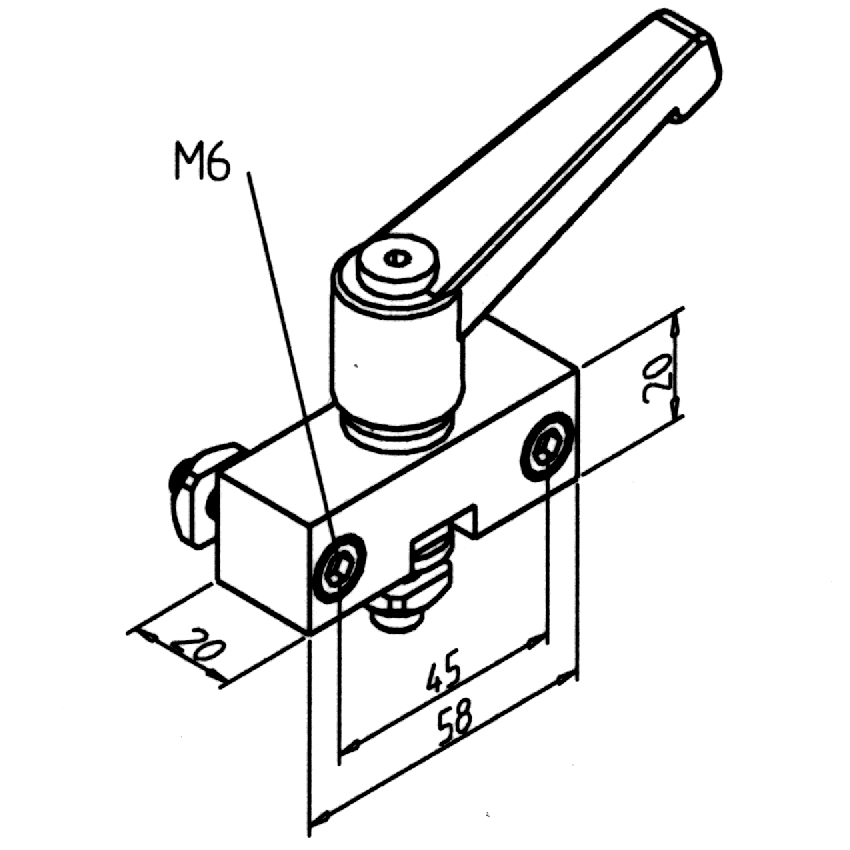

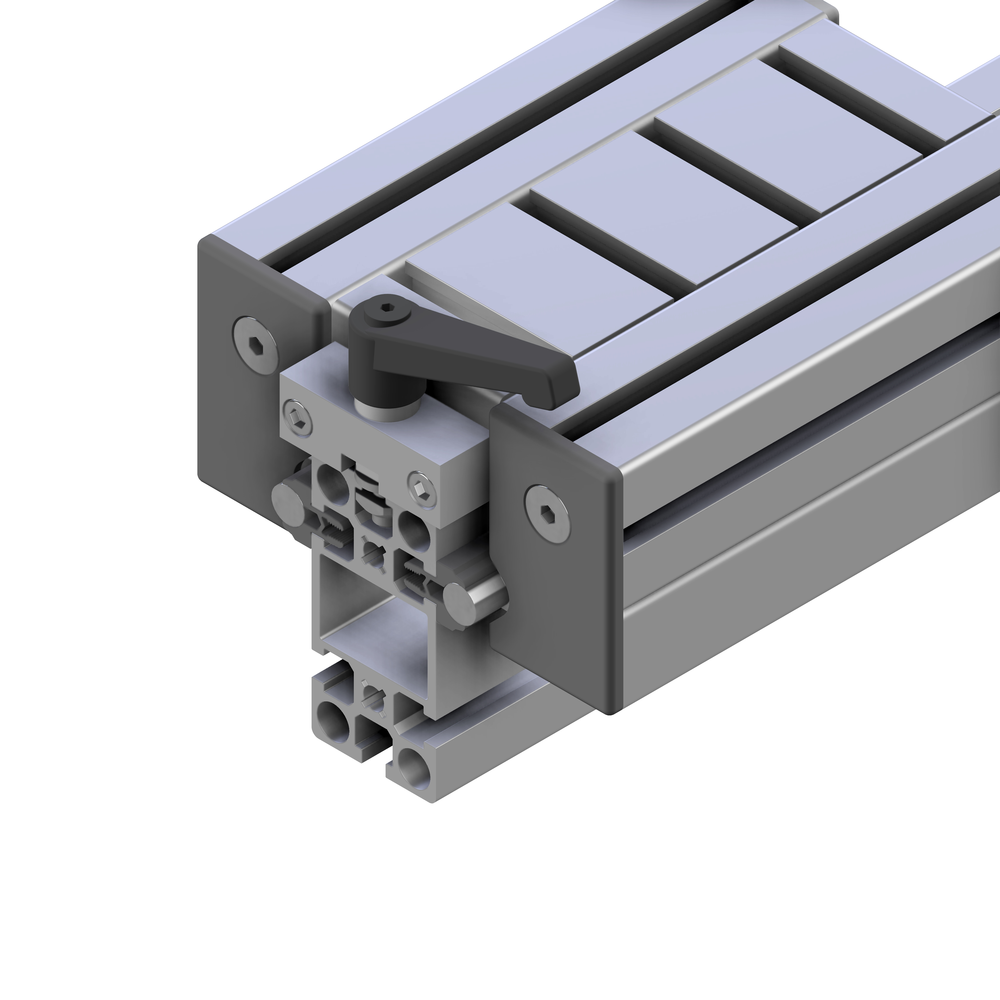

Slide clamping unit, top LWG / LWN / LW
280270/0
Login for partner discounts.
Create an account
but
Login
Add to the popular
Technical data/items supplied
- Aluminium, anodized E6/EV1
- With clamping device
- With fastening material steel, zinc plated
- Weight = 0.199 kg/piece
Applications

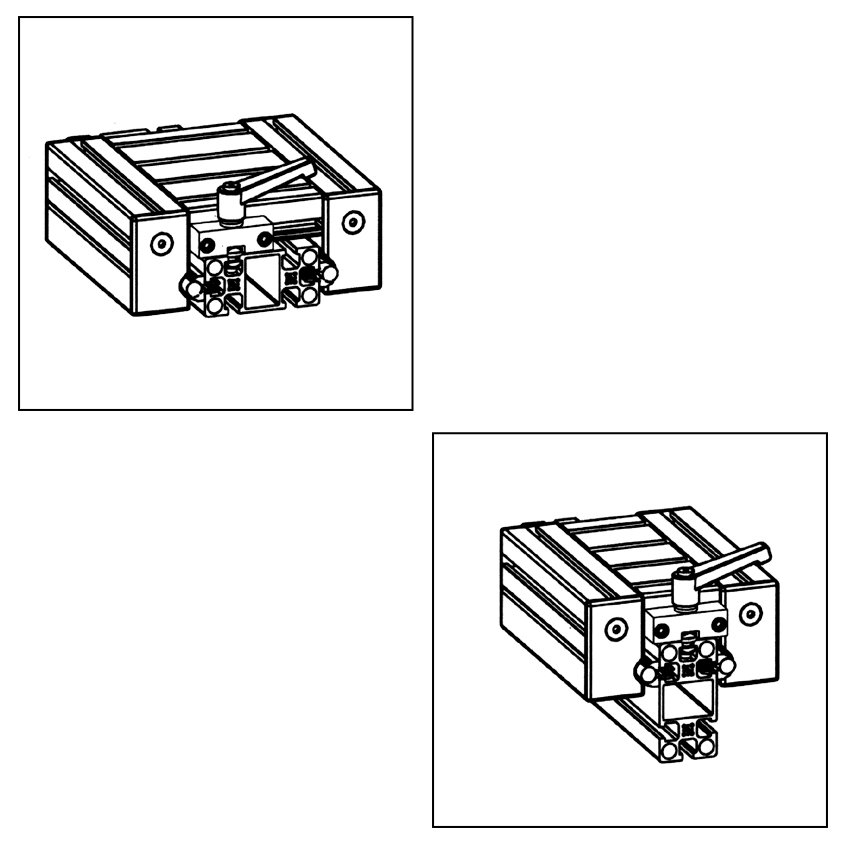

- Clamping of MiniTec slide LW and slides LWN / LWG on rail surface
- Clamping of MiniTec adjusting units
Assembly
- Preadjust clamping shaft and lead it in profile groove
- Insert plastic element
- Install the housing block
- Secure clamping lever with installation glue Loctite 243
