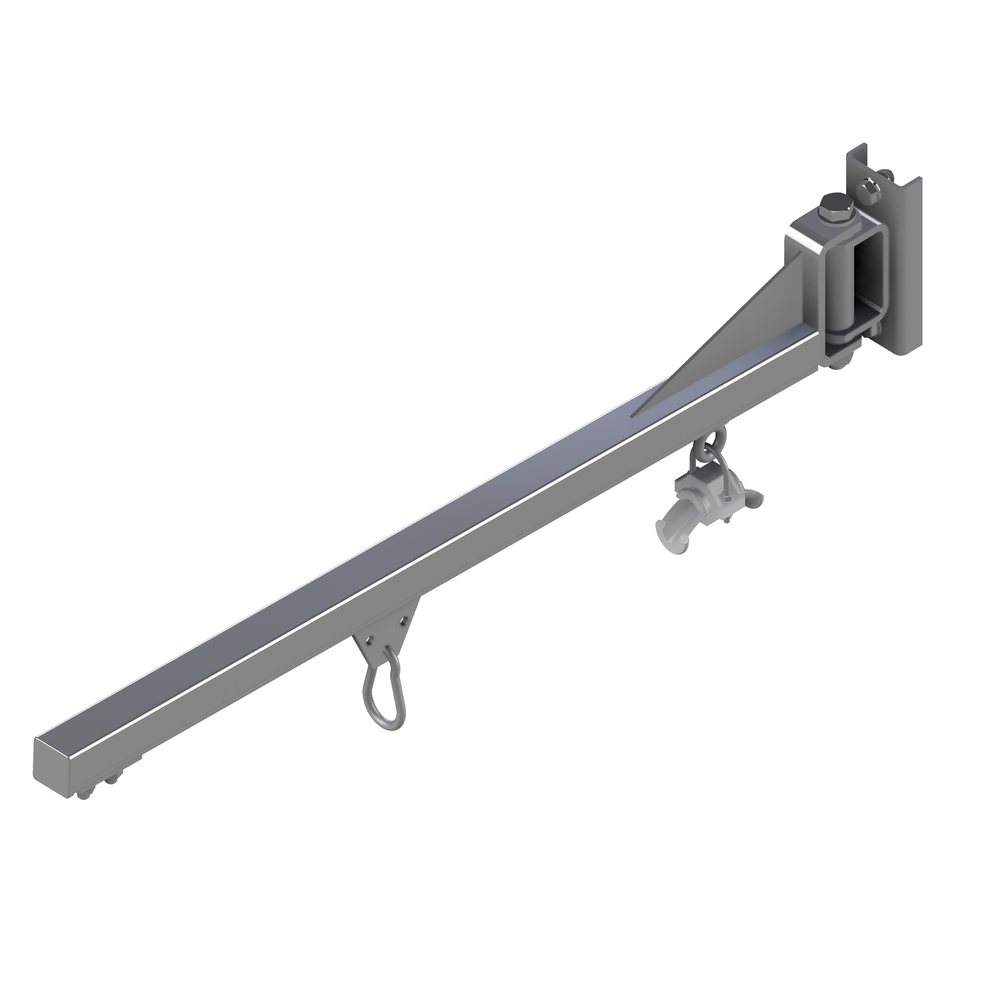

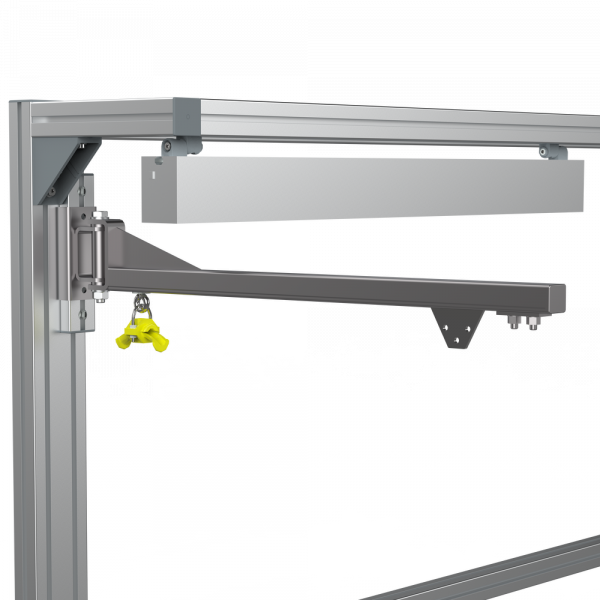

SWIVEL CANTILEVER C-RAIL 30 CONDUCTIVE
320230/6
Conductive C-profile 30 swivel arm provides reliable guidance, safe tool use, and ESD protection.
Login for partner discounts.
Create an account
but
Login
Add to the popular
Technical data/items supplied
- Steel
- 180° swiveling
- Equipped with tool trolley, cable holder (10-16), end stop and end cap
- Fastening material

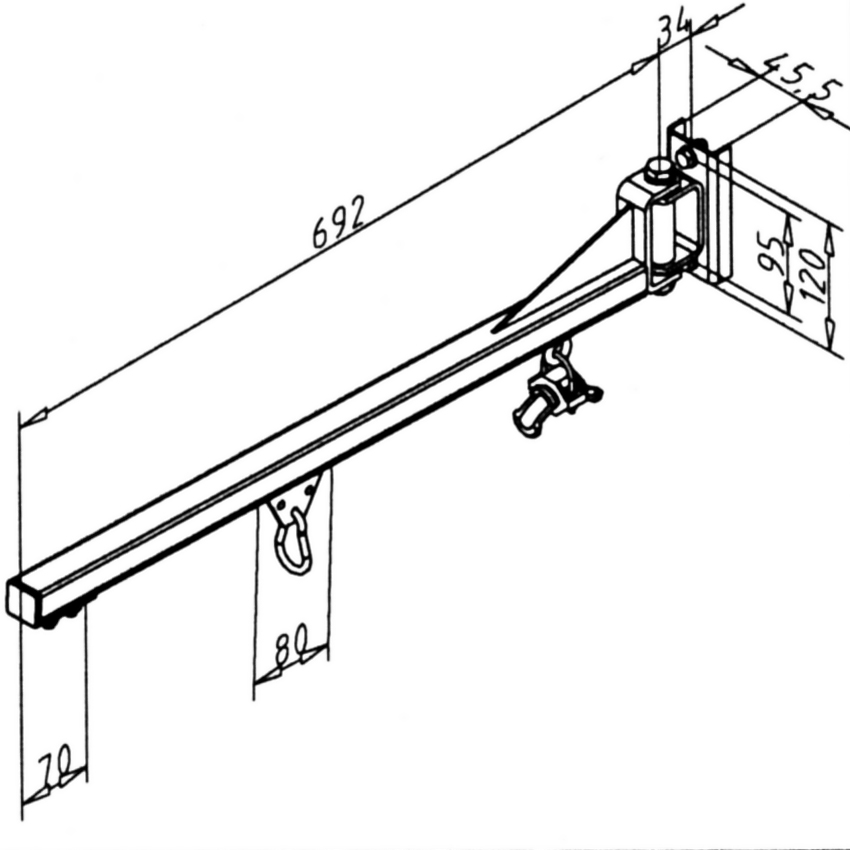

- Length: 692 mm
- Load capacity: 200 N
- Weight = 2.310 kg/piece
Applications
- For compressed air and power tools
Assembly
- Slight slope to the rear, so that unused tool slides automatically from work area
- Fasten to the portal construction with supplied hardware
