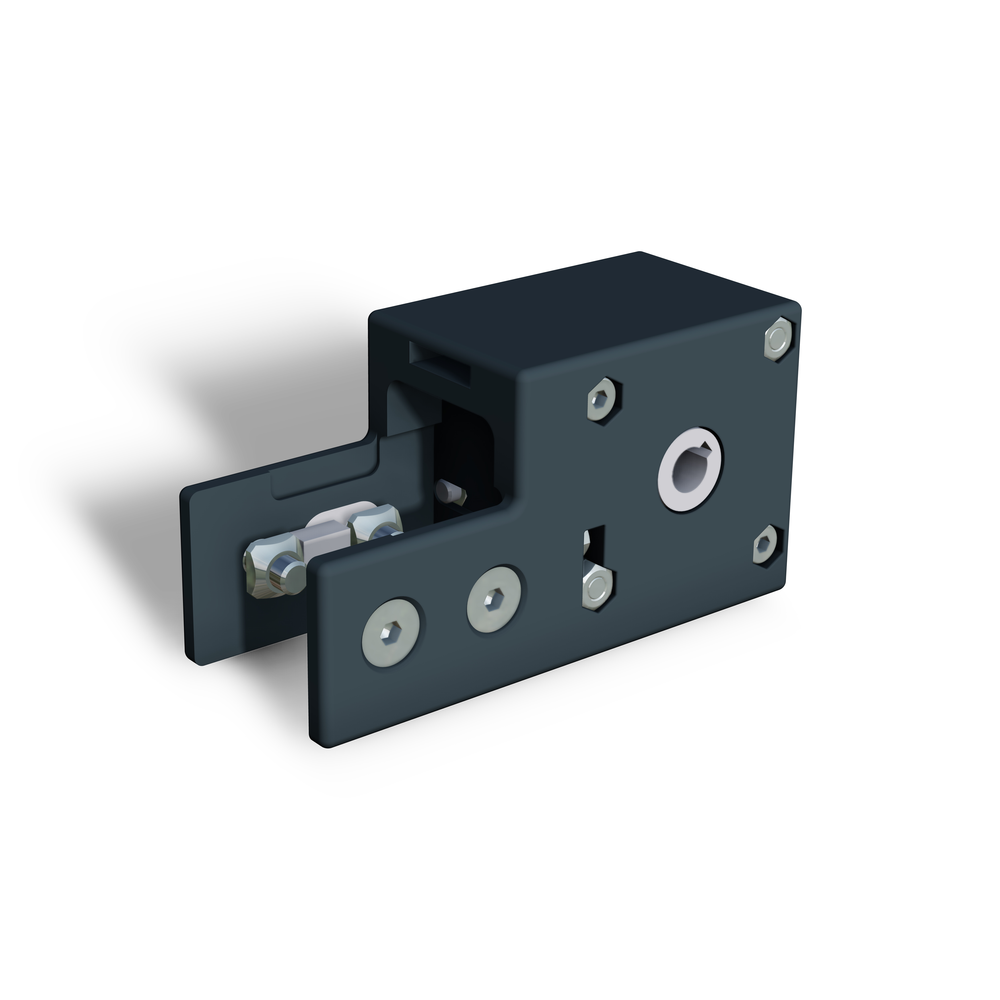

Timing belt reverse unit LR 6 _12, feather key groove 4 mm
280510/4
Timing belt end piece LR 6_12 for precise and reliable motion transmission in linear guides.
Login for partner discounts.
Create an account
but
Login
Add to the popular
Technical data/items supplied
- Aluminium, Pressure die-casting, powder-coated, grey
- Connection elements, steel, galvanised
- Aluminium pulley with flanges made of stainless steel for timing belt 16AT5
36 teeth, effective diameter 57.3 mm
Timing belt length required within the return/reversing point 160 mm
max. Torque 30 Nm - Pulley with bore 12 mm and feather key groove 4 mm
- 2 ball-bearings
- Weight = 0.960 kg/piece
Applications
- For MiniTec linear guides LR 6 Z
Assembly
- Insert square nut M8 in rail and pre-position
- Guide the timing belt through the reverse unit
- Guide the pulley on rail end
- Pre-assemble fastening screws
- Fix timing belt on slide
- Tighten at pulley using hex Allen key SW3
- Tighten fastening screws
