Set of bearings for transport roller 36
211056/0
Login for partner discounts.
Create an account
but
Login
Add to the popular
Technical data/items supplied
- With fastening material steel, zinc plated
- Bearing bushing, PA 6
- Axle bolt, steel
- Roller carrier, PP grey

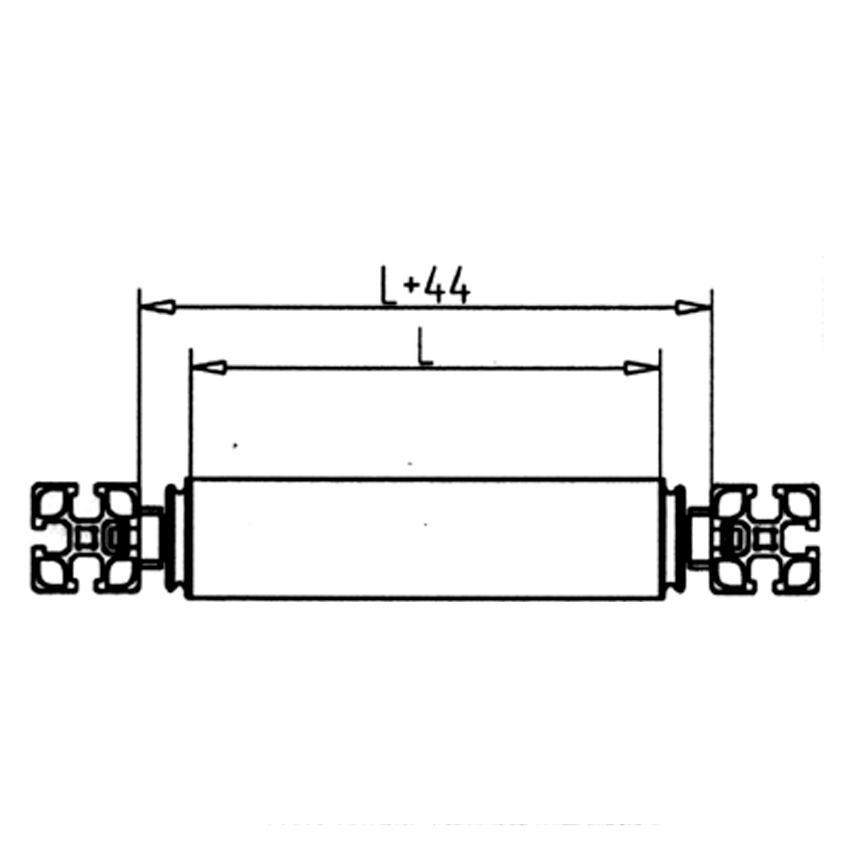

- For conveyor rollers from 60 - 1000 mm
- Load/roller max. 20 kg
- Max. tightening torque: 5 Nm
- Weight = 0.057 kg/piece
Applications
- Roller tracks of unlimited length
- Drive via round belt Ø 5 mm possible
- Roles are individually interchangeable
- The following is needed to make a conveyor roller:
2x bearing set, ABS
1x tube ABS, aluminium or stainless steel with appropriate length
Assembly
- Assembly of the roller carrier on all profiles of profile series 45 possible
- Mount roller carrier to the profile
- Press bearing bush into the tube
(deburr the inside of the tube generously for improved assembly) - Insert axle bolt in bearing bush
- Clip in transport roller
