Brake roller PVC 50
212250/0
Login for partner discounts.
Create an account
but
Login
Add to the popular
Technical data/items supplied
- With fastening material steel, zinc plated
- ABS, grey
- Please specify dimension L (pipe length)
- On request also available with tube in aluminum mill finished, anodized or stainless steel
- Weight = (basic weight) 0.295 kg
- Extra weight = 0.45 kg/m tube length
Applications
- To decelerate transport boxes on sloped roller conveyors
- When it comes to the requirement for high concentricity, a tube made of aluminum or stainless steel is to be preferred

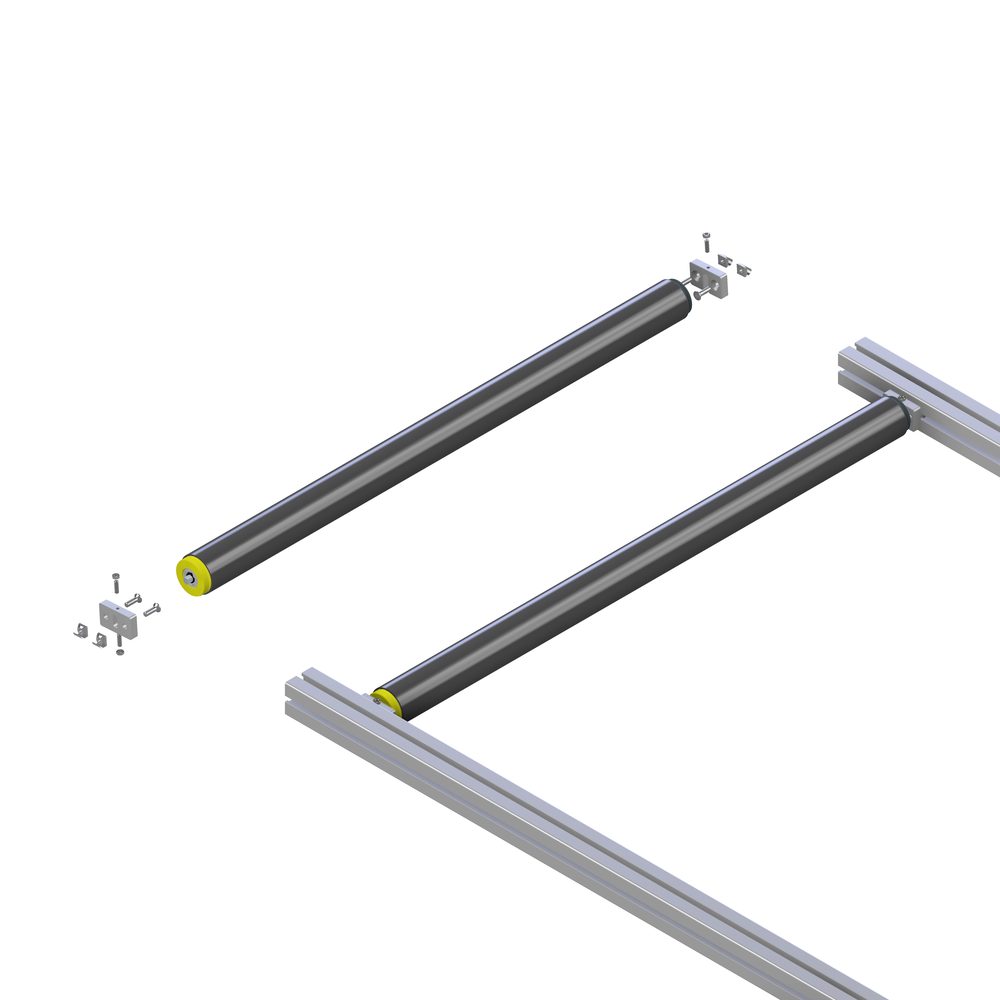

Assembly
- Mount lateral support on frame of roller conveyor
- Clamp the roller and adjust the height above the lower studs
- The brake-roller can be adjusted in height +/- 3 mm
