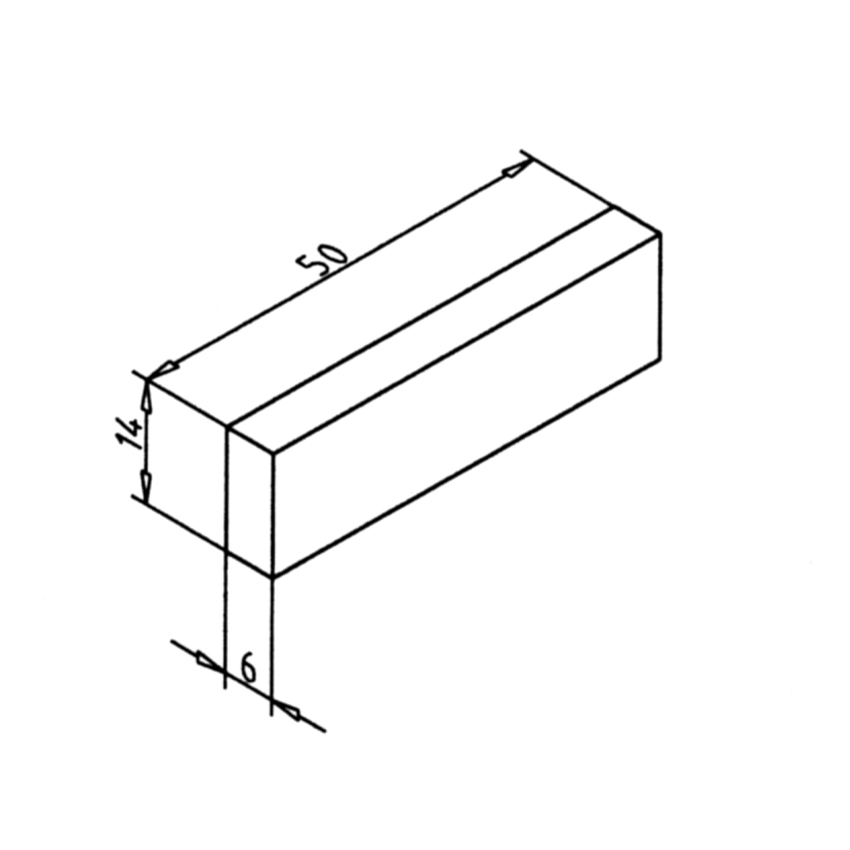

Magnet 6 x 14 x 50 mm
210032/0

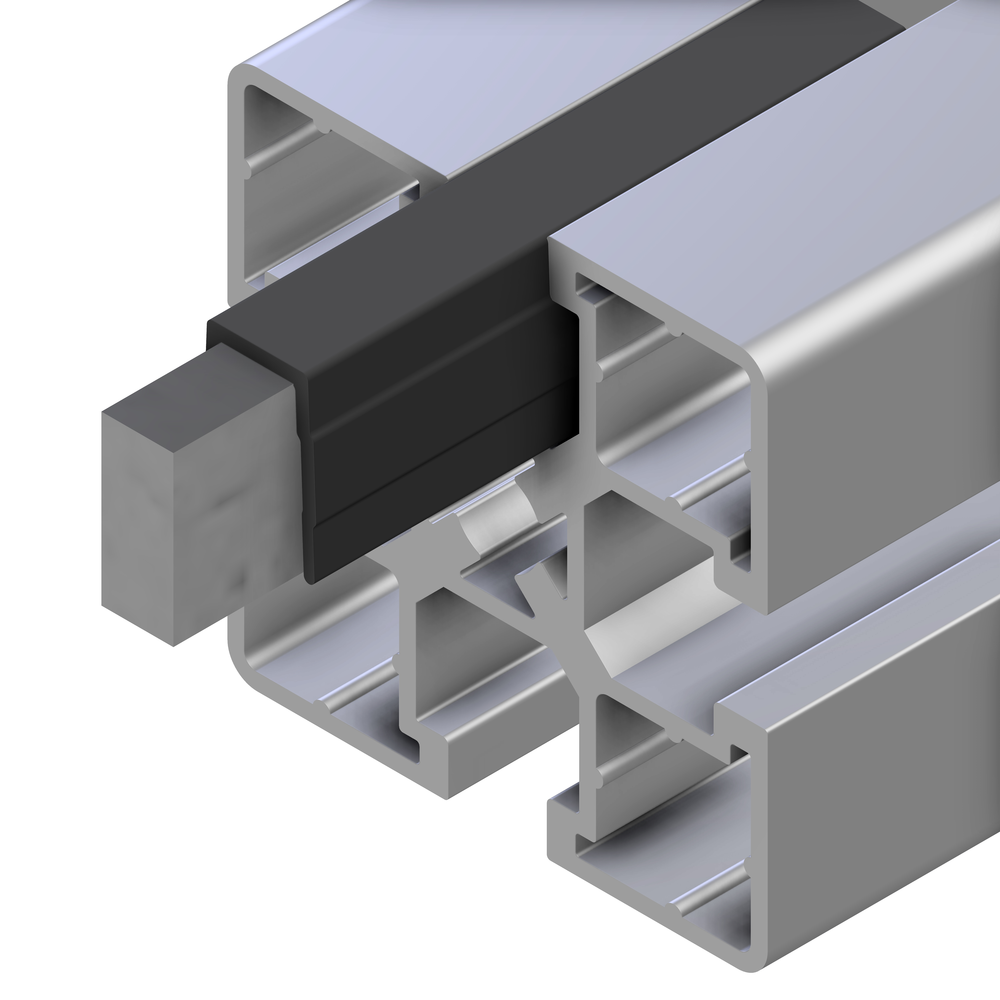

Strong adhesive magnet 6x14x50 mm, perfect for tools, conveyor belts, and use in aluminum profile systems.
Login for partner discounts.
Create an account
but
Login
Add to the popular
Technical data/items supplied
- NeFeB N35, nickel-plated
- Without fastening kit
- Attention: Electric- and memory devices can be faulted by the magnet
- Power density, BHmx = 263kJ/m³
- Remanence, Br = 1170 mT
- Coercive field strength Hcj = 955 kA/m
- Max. service temperature +80 °C
- Weight = 0.030 kg/piece
Applications
- Adhesive magnet for tools
- Use under conveyor belts as tracking, for magnetizable conveying products or at higher conveying speeds
- Fitting for all profiles of profile series 45

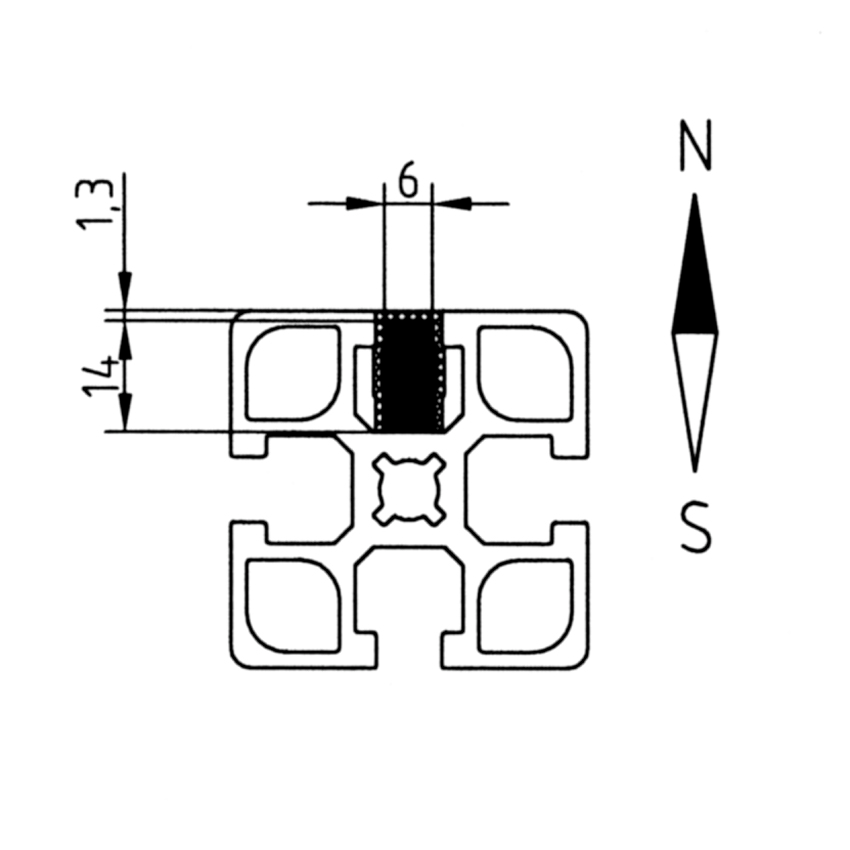

Assembly
- Snap or slip the cover profile into profile groove
- Insert magnet into t-slot
- For fastening: (mighty recommended) Use end cap AL, set screw with square nut or t-slot bar
