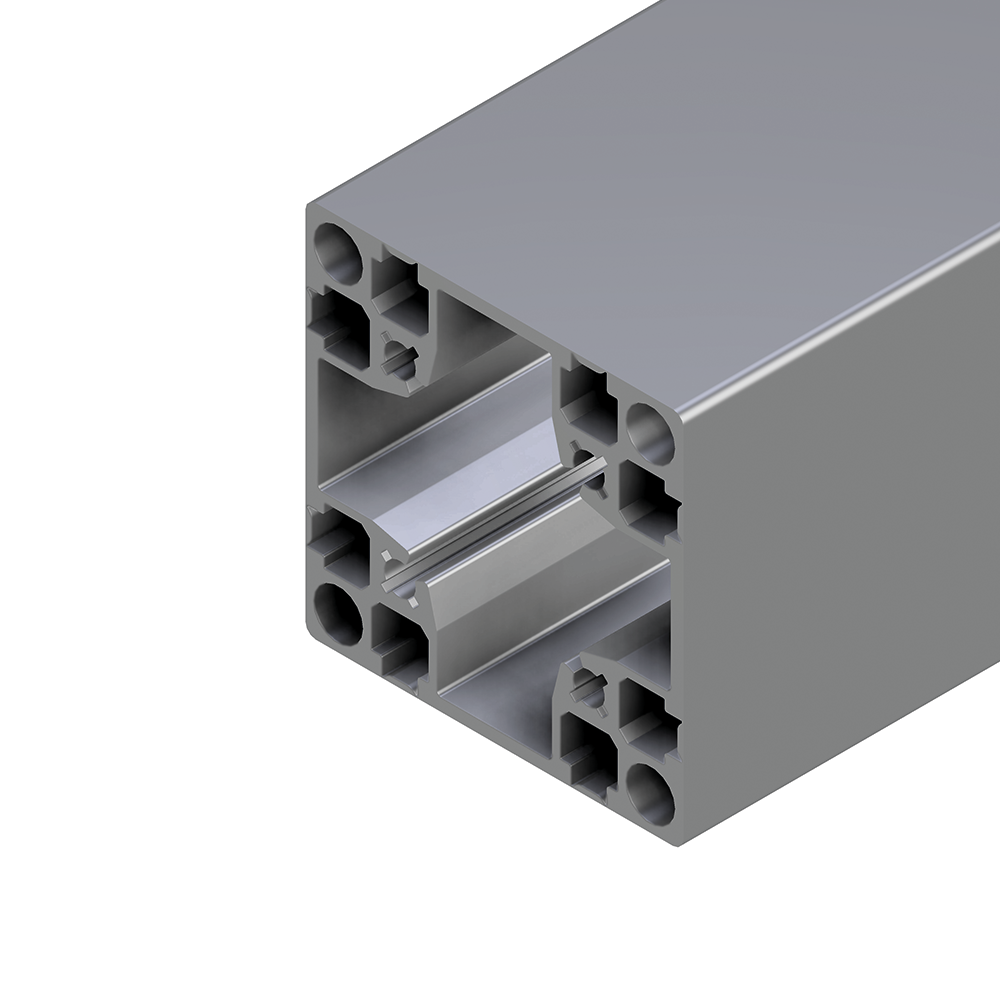

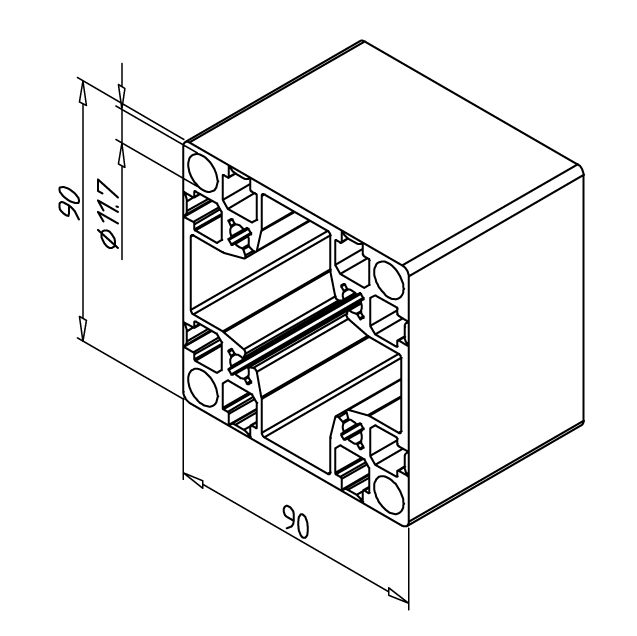

Profile 90 x 90 G
201082/0
Alu profile 90 x 90 G for industrial use. Explore our aluminium profile system – strong, modular, and easy to assemble.
Make a list of different variations of this product:
Prosimo preverite polja za pravilen vnos mere?
List of selected items:
- You do not have the products added right now -
For additional machining of profiles (holes, threads, countersinking holes, angle cutting, milling, etc.), please contact us at prodaja@minitec.si.
Login for partner discounts.
Create an account
but
Login
Add to the popular
You can add to the product:
Technical data/items supplied
- Aluminium, extruded, anodized E6/EV1
- Ix = 195.271 cm4
- Iy = 195.271 cm4
- wx = 43.393 cm3
- wy = 43.393 cm3
- IT = 723.070 cm4
- Weight = 5.329 kg/m
- Bar length = 6 m
- Packing unit = 12 m
Applications
- Grooves expandable

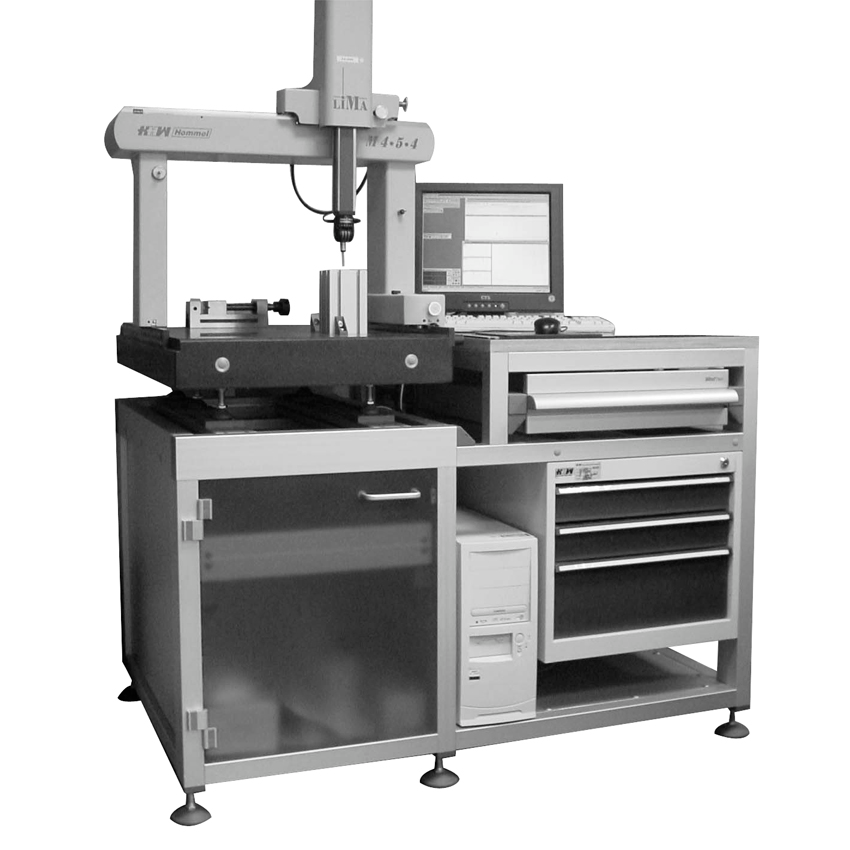

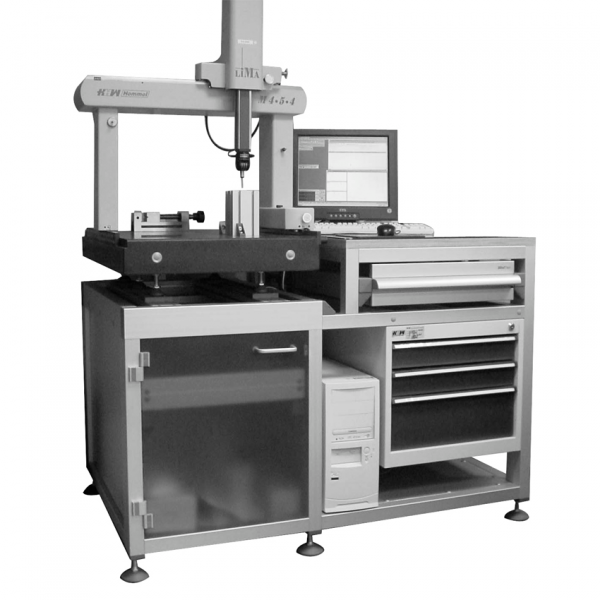

- All types of constructions, specifically for high hygiene requirements in the food industry, medical technology, bottling of beverages
- Guide for internal counterweights in a central hollow chamber
Assembly
- MiniTec power-lock fastener
- Closed grooves can be opened with the groove opener part no. 260815/0 to the desired length
