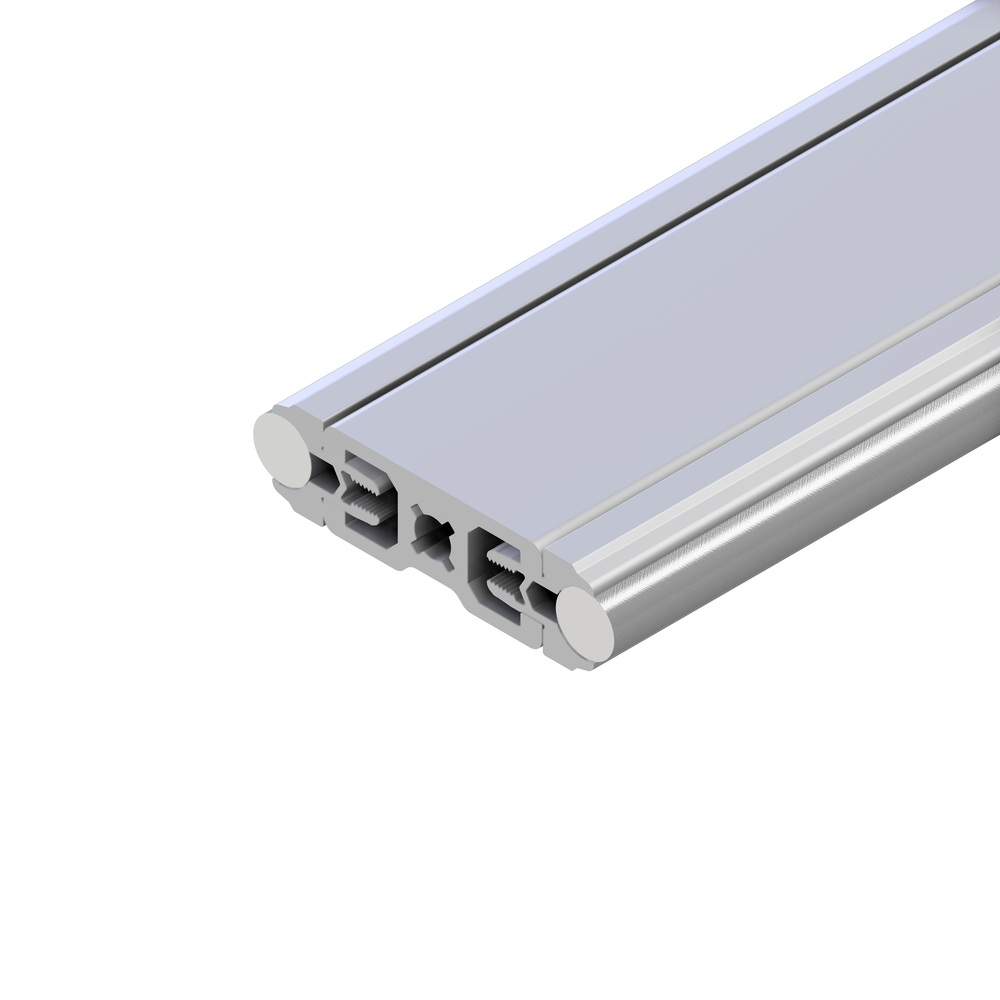

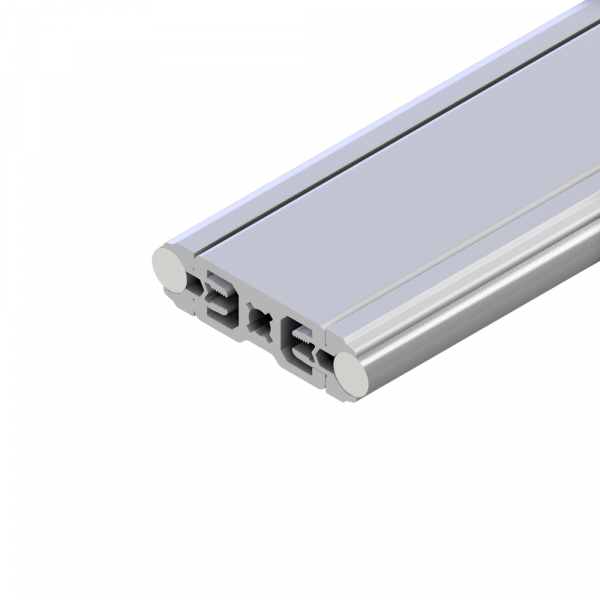

RAIL 19 L=
280009/0
Rail 19 for linear and column guides, with special versions available on request.
Login for partner discounts.
Create an account
but
Login
Add to the popular
You can add to the product:
Technical data/items supplied
- Aluminium, anodized E6/EV1
- Profile 19 x 45
- On both sides with shaft supporting profile and shafts Ø 12 h6, pre-finished installed
- Without end caps
- Stainless version part no. 280009/3
- Weight = 3,666 kg/m
- Bar length = 6 m
Applications

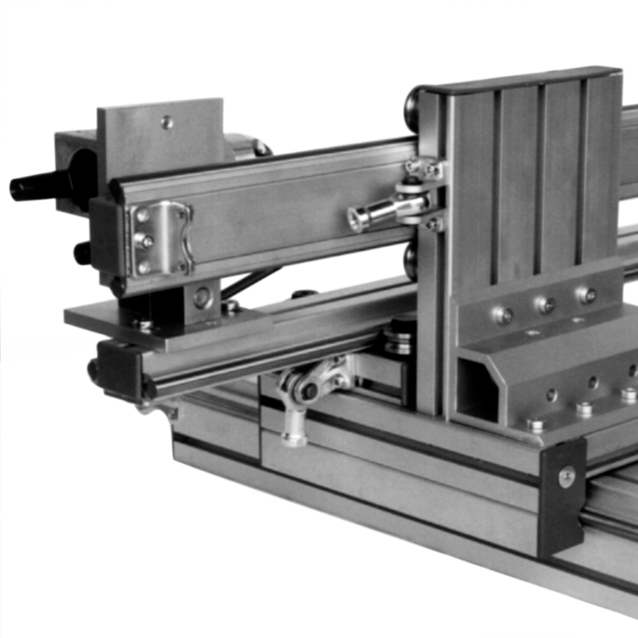

- Linear and column guides
- Special versions
For longer lengths or to respond to confined installation situations, on request, the rails can also be butt-jointed or can be produced divided into shorter lengths.
Assembly
- For vertical use or for high speed applications, we recommend the use of shaft retention devices part no. 280052/0
- To use shaft locking devices on both sides, the shaft and shaft carrier should be at least 30 mm shorter than the total length
