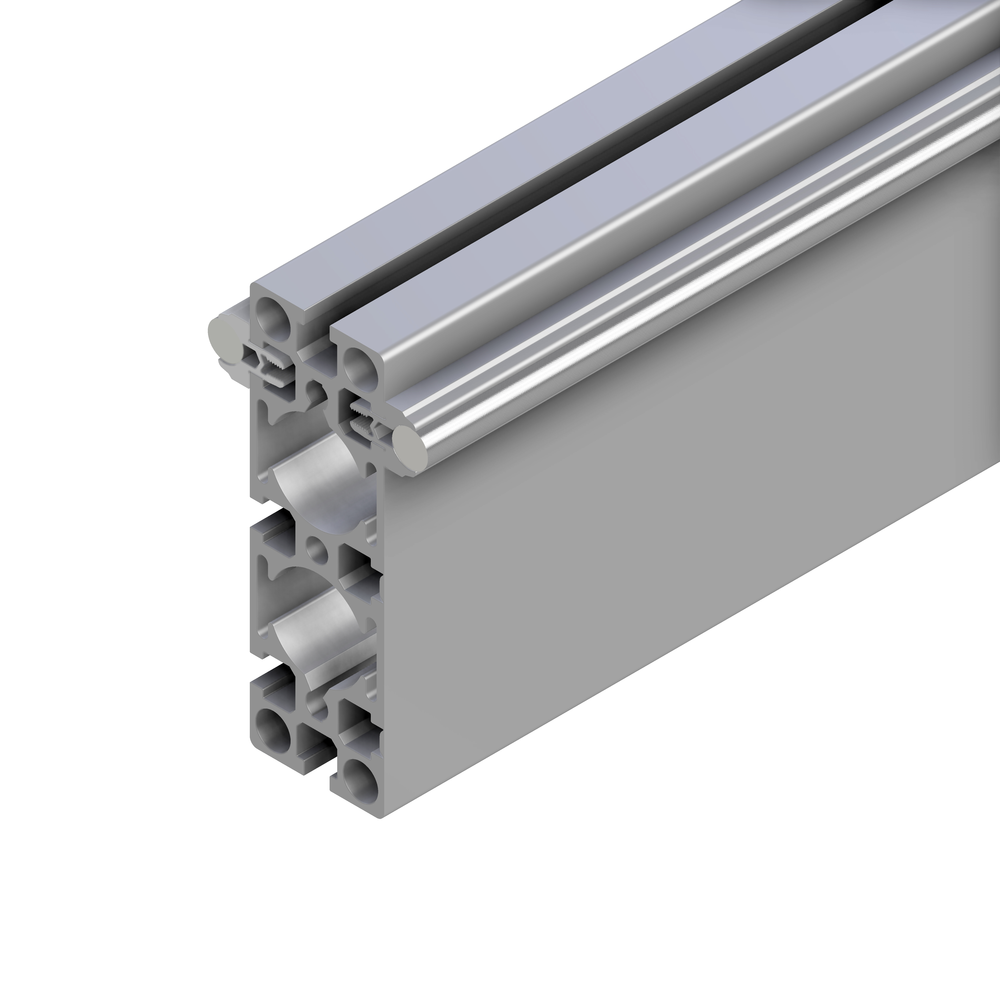

Rail 135 H
280012/2
Rail 135 H for precise and reliable linear motion in linear guides for various applications.
Login for partner discounts.
Create an account
but
Login
Add to the popular
Technical data/items supplied
- Aluminium, anodized E6/EV1
- Profile 45 X 135 1G
- On both sides with shaft supporting profile and shafts Ø 12 h6, pre-finished installed
- Without end caps
- Stainless version part no. 280012/4
- Weight = 8,09 kg/m
- Bar length = 6 m
Applications

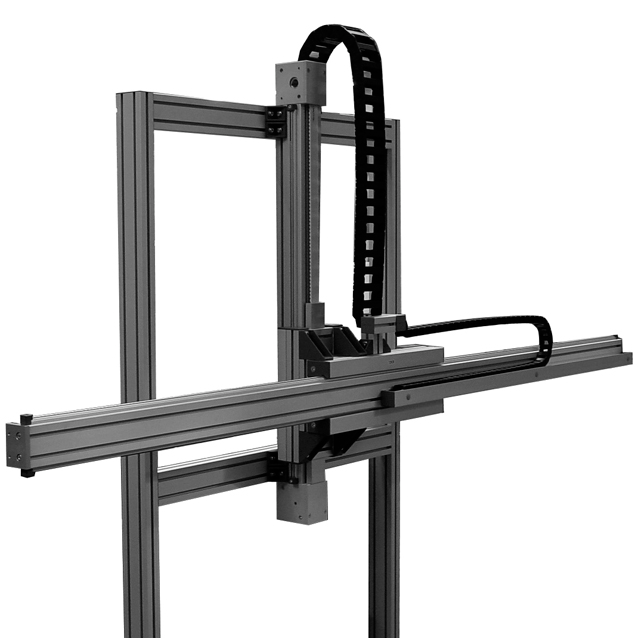

- Linear and column guides
- Special versions
For longer lengths or to respond to confined installation situations, on request, the rails can also be butt-jointed or can be produced divided into shorter lengths.
Assembly
- For vertical use or for high speed applications, we recommend the use of shaft retention devices part no. 280052/0
- To use shaft locking devices on both sides, the shaft and shaft carrier should be at least 30 mm shorter than the total length
