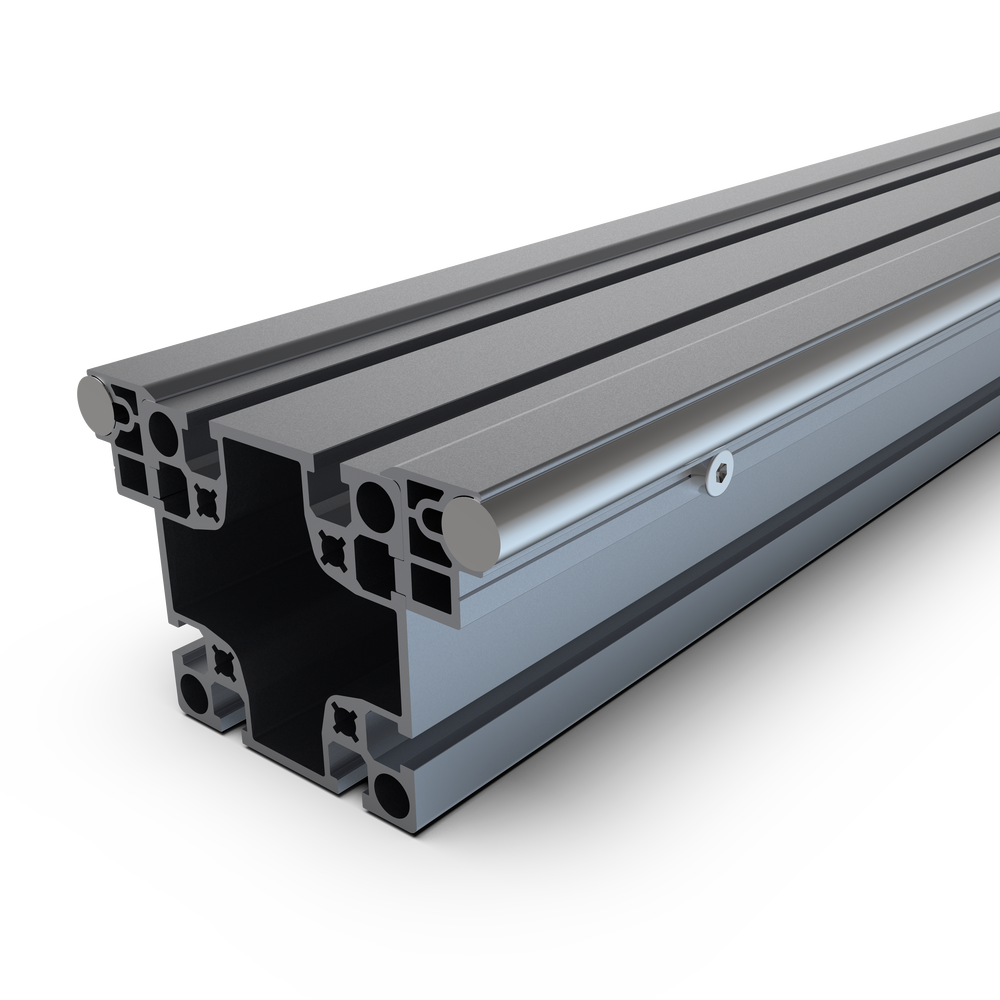

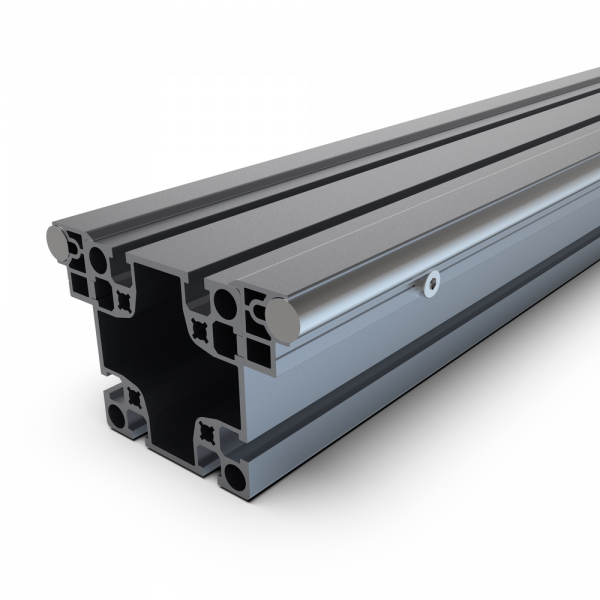

Rail LR16 - 90
280821/0
Rail LR16 - 90 for precise and reliable linear motion in linear guides for various applications.
Login for partner discounts.
Create an account
but
Login
Add to the popular
You can add to the product:
Technical data/items supplied
- Aluminium, anodized E6/EV1

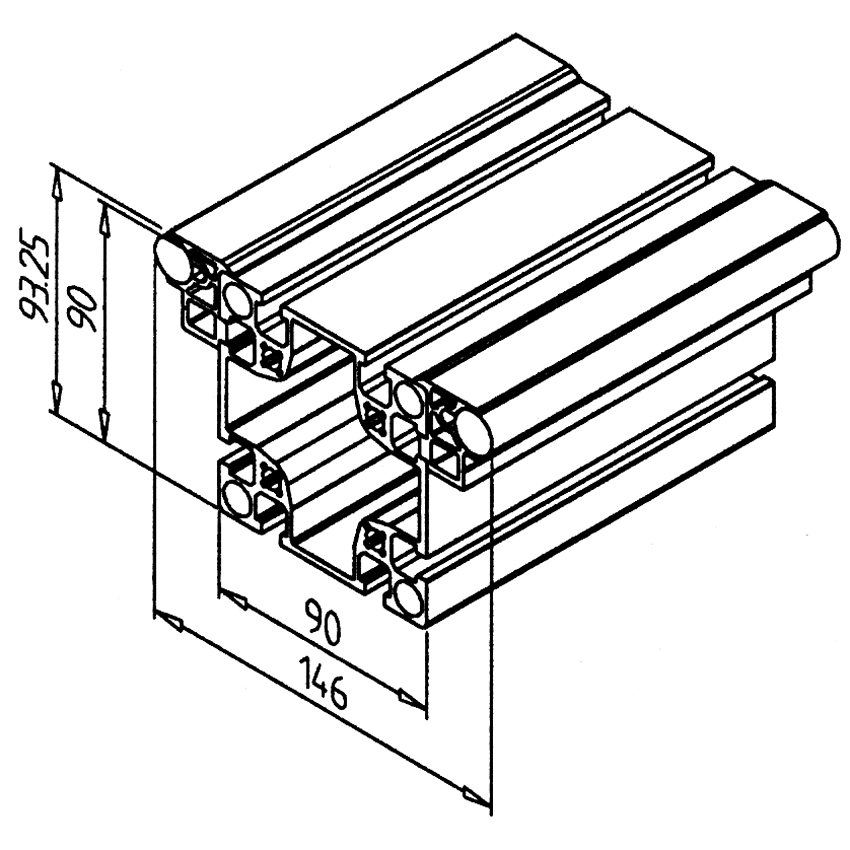

- Profile 90 x 90 L
- On both sides with shaft carrier profile LR 16 and shafts ø 16 h6, installed pre-assembled
- Without end caps
- Weight = 10,067 kg/m
- Bar length = 6 m
Applications

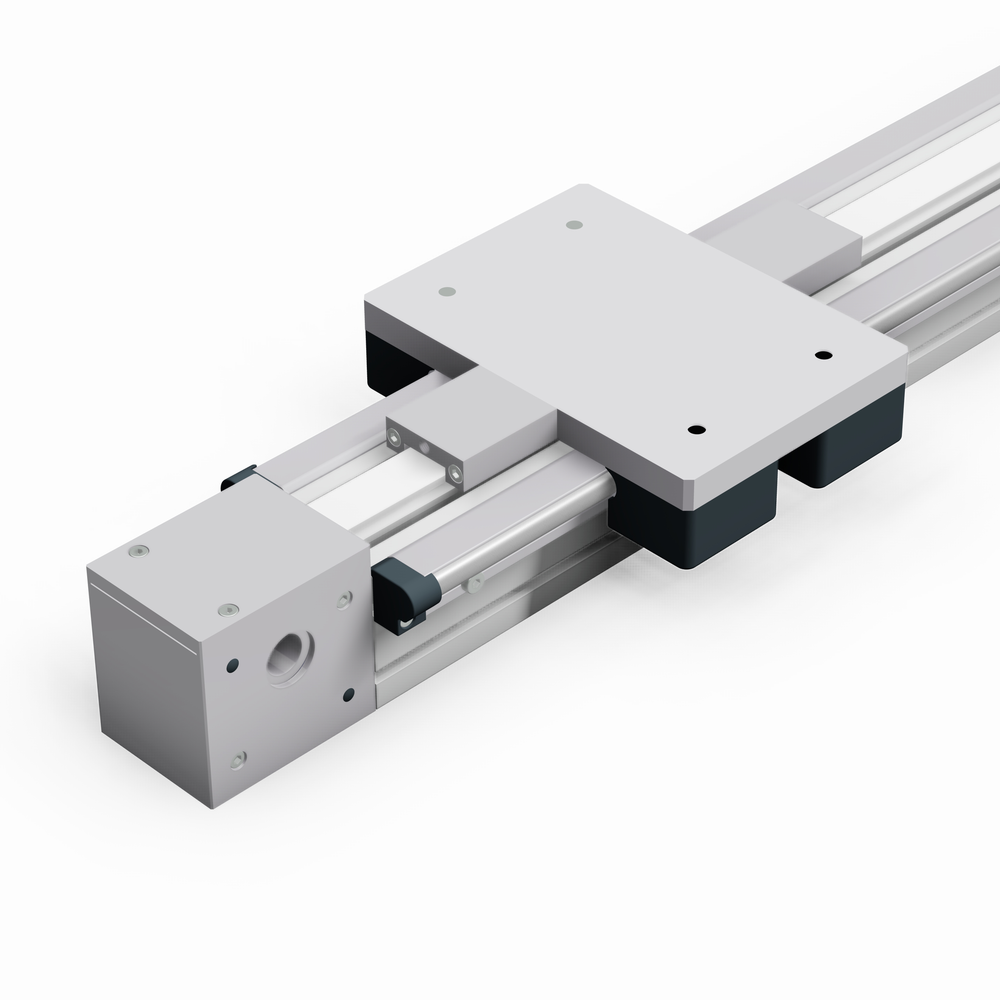

- Linear and column guides for high load
- Belt return in profile
- Special versions
For longer lengths or to respond to confined installation situations, on request, the rails can also be butt-jointed or can be produced divided into shorter lengths.
