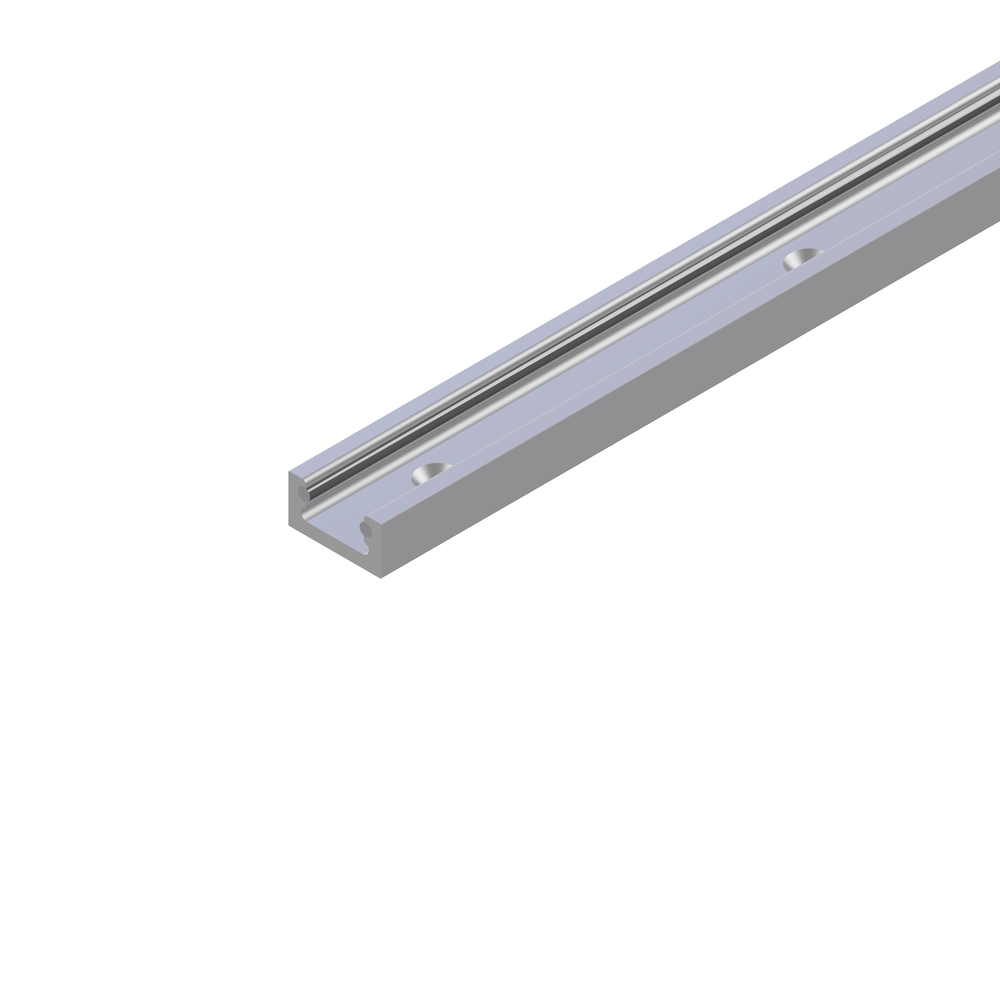

Rail LR 6 compact stainless
280149/0
Stainless rails LR 6 for precise and durable linear motion in linear systems.
Login for partner discounts.
Create an account
but
Login
Add to the popular

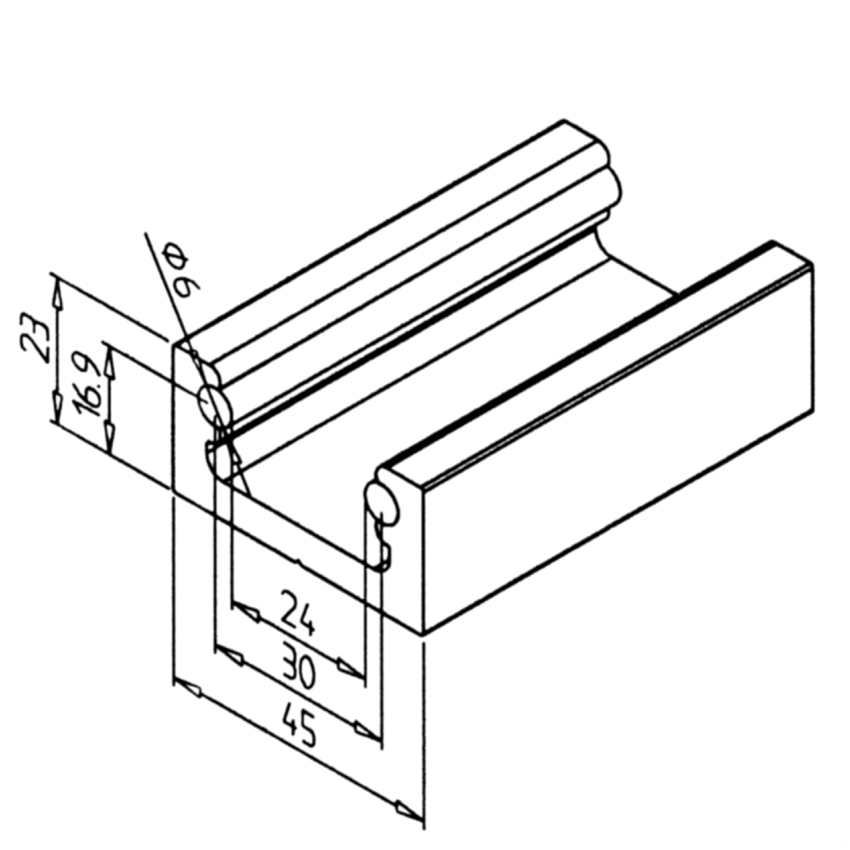

Technical data/items supplied
- Aluminium, anodized E6/EV1
- 2 shafts Ø 6 h6 stainless steel

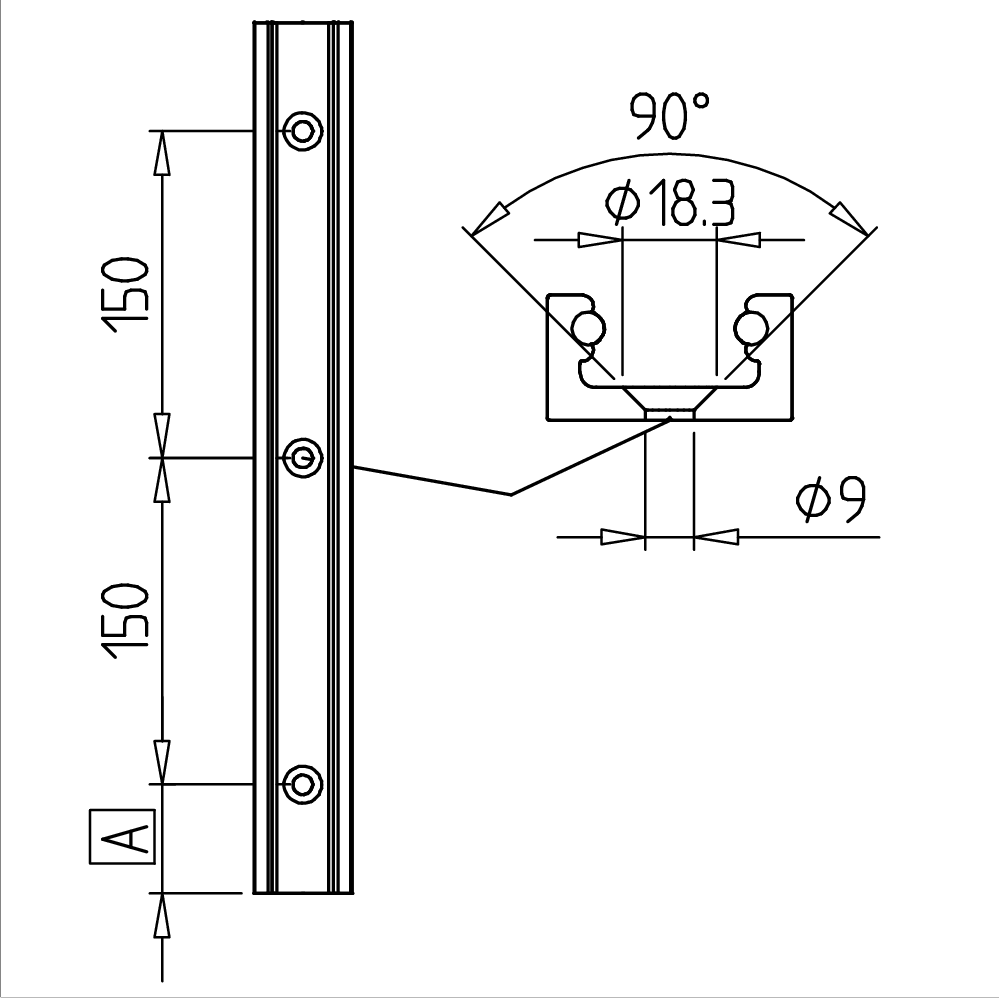

- Drilled ready for assembly ø 8 mm, Division 150 mm
- Weight = 1.781 kg/m
- Bar length = 6 m
Applications
- Handling devices
- Guide large drawers
- Doors
Assembly
- Fasten the rail with the countersunk screw M8 x 20 and the square nut M8 to the MiniTec profile
- The hole pattern is cut to size centrically.
If a different edge distance is required, please specify dimension A.
Additional hole spacing is also possible
