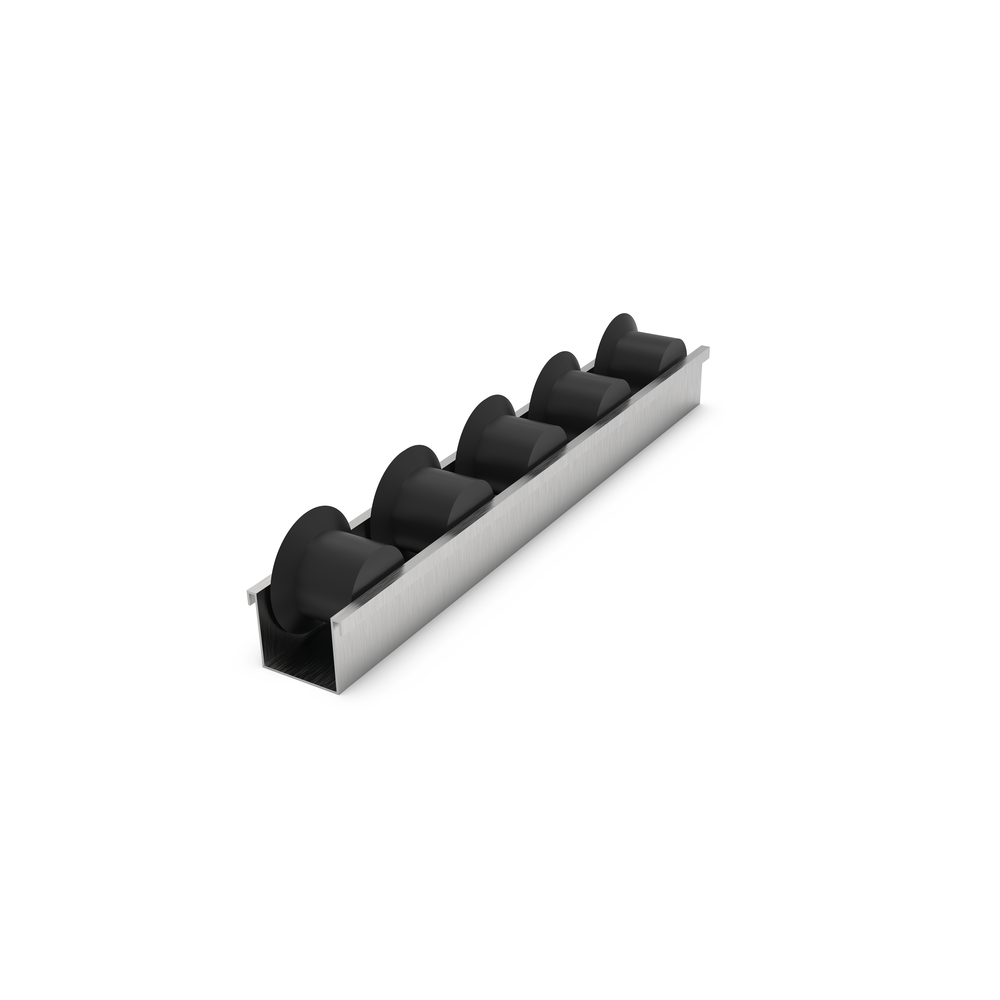

Roller strip ESD with flanged rollers
320565/0
ESD roller strip with flanged rollers ensures smooth component movement, reduces damage risk, and provides protection against static electricity.
Login for partner discounts.
Create an account
but
Login
Add to the popular
You can add to the product:
Technical data/items supplied
- Length according to costumers specification
- Max. length 6 m

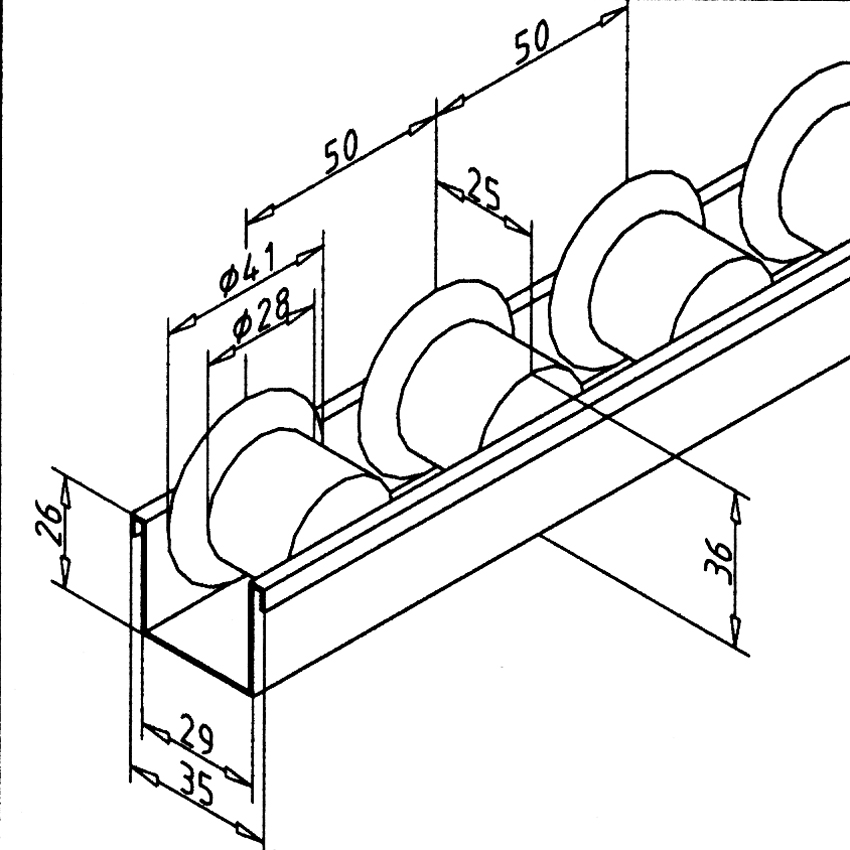

- Division 50 mm
- Supporting profile: Steel, zinc plated
- Weight = 0.615 kg/m
Applications
- The rollers can be used over a temperature range from -30°C up to +100°C
- For longer roller strips or higher load, we recommend:
- inserting lengthwise or crosswise construction profiles underneath for support

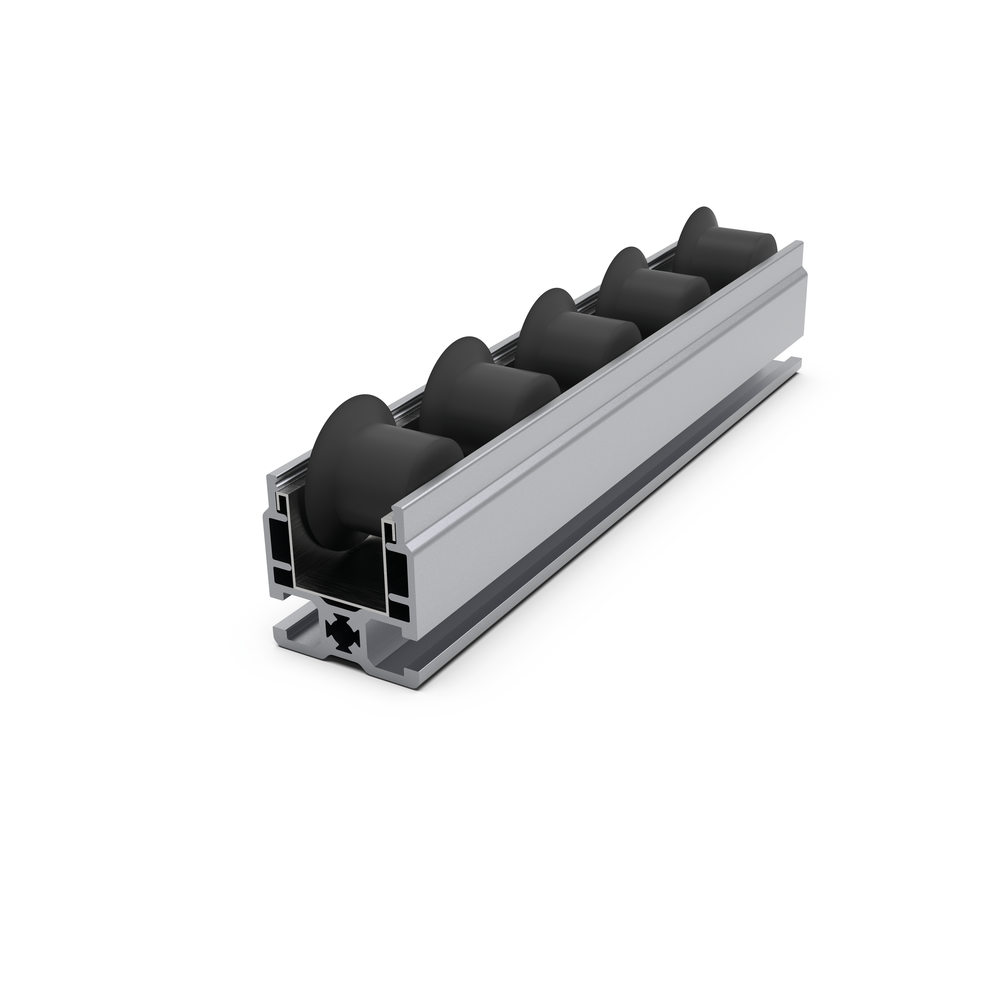

- inserting the roller strip into the 45 FRS profile Part no.. 201152/0 it is then also possible to cover the spaces between the rollers, a system height (SH) of 54 mm is then reached
