Roller strip with flanged rollers
320560/0
Roller strip with flanged rollers provides secure material guidance, prevents slipping, and ensures reliable transport in production processes.
Login for partner discounts.
Create an account
but
Login
Add to the popular
You can add to the product:
Technical data/items supplied
- Length according to costumers specification
- Max. length 6 m
- Division 50 mm
- Supporting profile: Steel, zinc plated
- Roller colour: yellow
- Weight = 0.615 kg/m
Applications
- The rollers can be used over a temperature range from -30°C up to +100°C
- Part no. 320565/0 Highly conductive wheels to prevent static charges. Roller colour: black
- For longer roller strips or higher load, we recommend:
- inserting lengthwise or crosswise construction profiles underneath for support

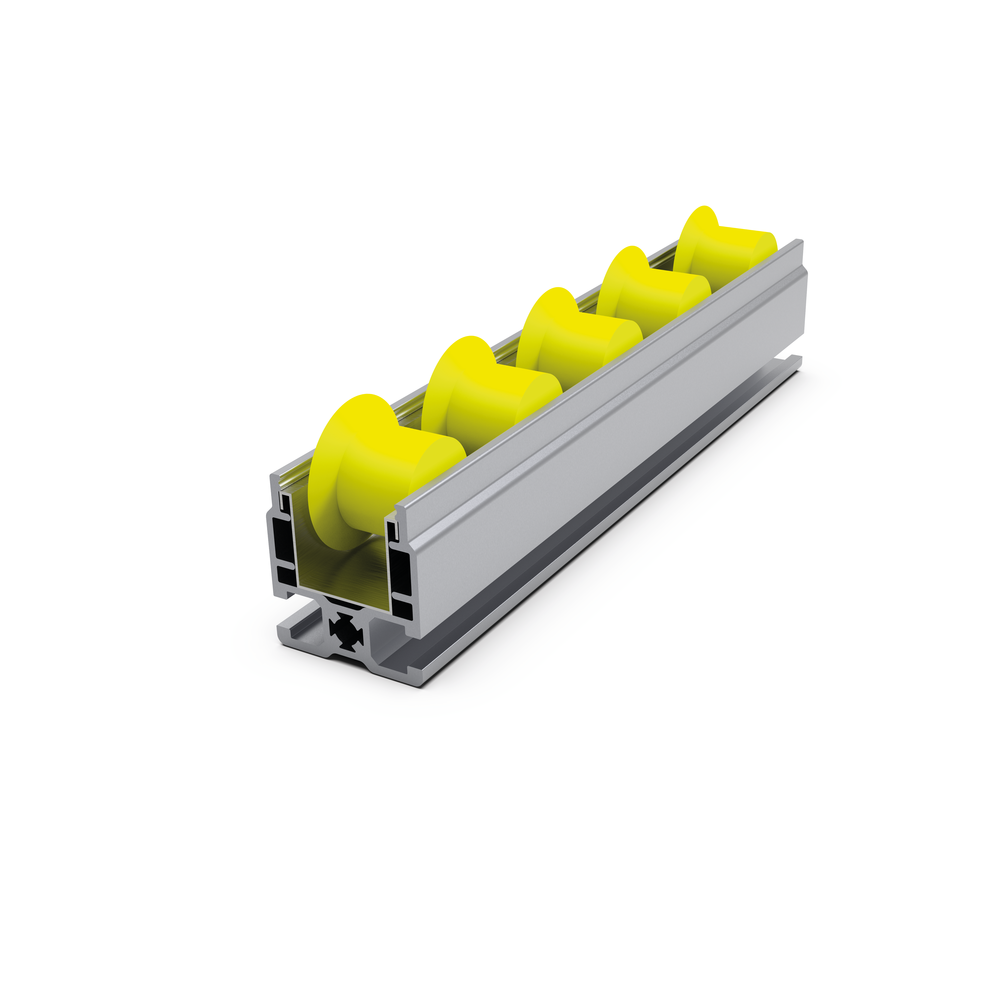

- inserting the roller strip into the 45 FRS profile Part no.. 201152/0 it is then also possible to cover the spaces between the rollers, a system height (SH) of 54 mm is then reached
