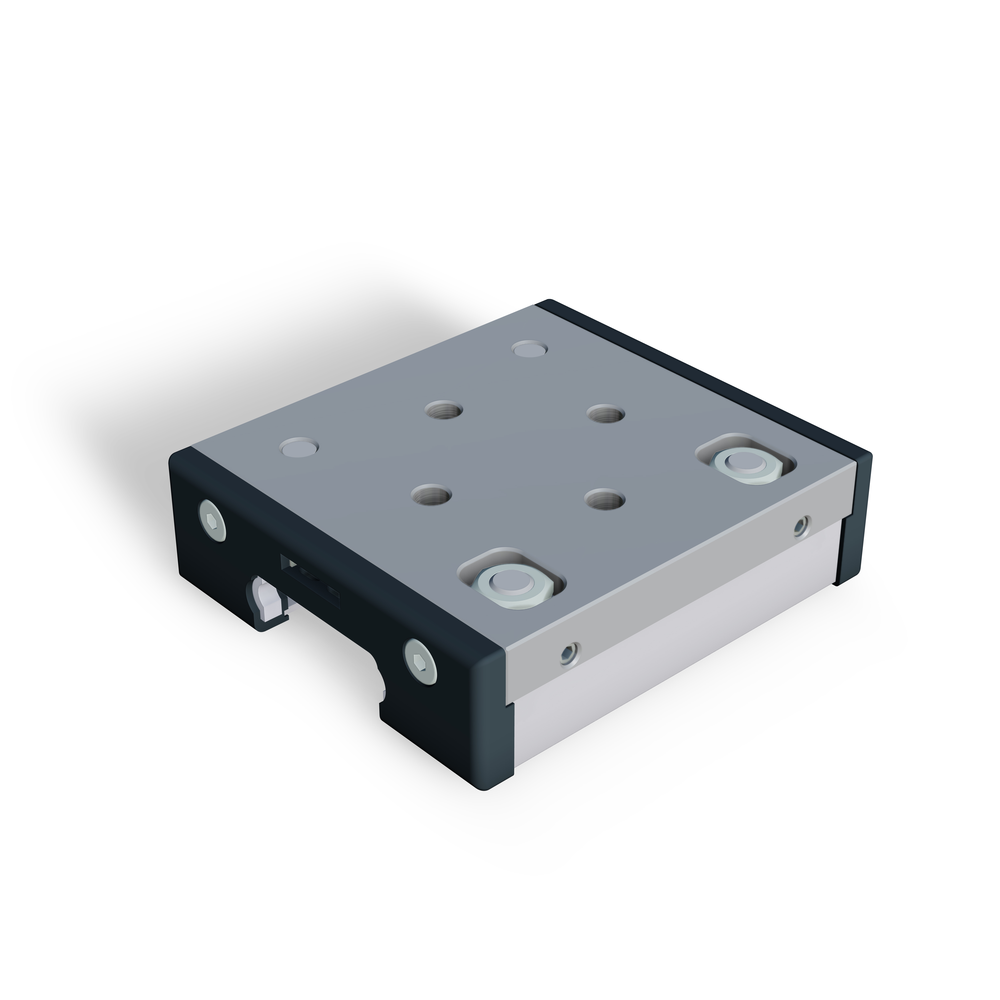

Slide LR 6 Z
280138/2

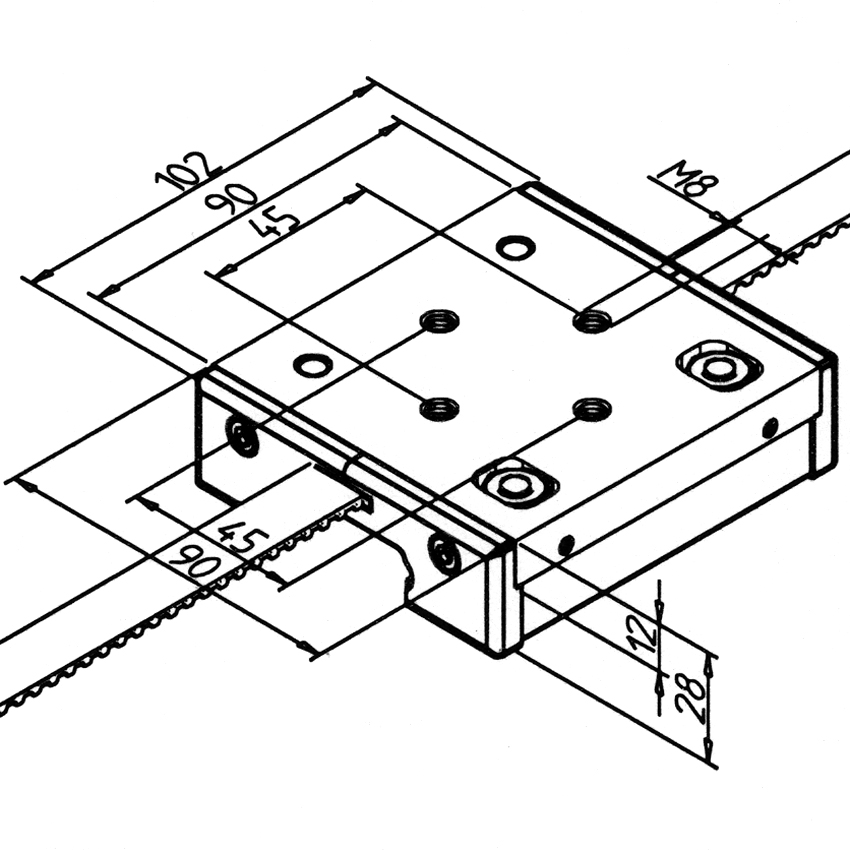

LR 6 Z linear slide, designed for high precision and quiet operation of linear guides in industrial applications.
Login for partner discounts.
Create an account
but
Login
Add to the popular
You can add to the product:
Technical data/items supplied
- Aluminium, anodized E6/EV1
- 4 double row casters LR 6
- Installed with concentric mounting bolts
- Covers with lubricating felt
- Integrated admission for timing belts
- Stainless version part no. 280139/2
- Weight = 0.502 kg/piece
Applications
- MiniTec linear guide systems LR 6
- Handling devices
- For rail part no. 280525/0

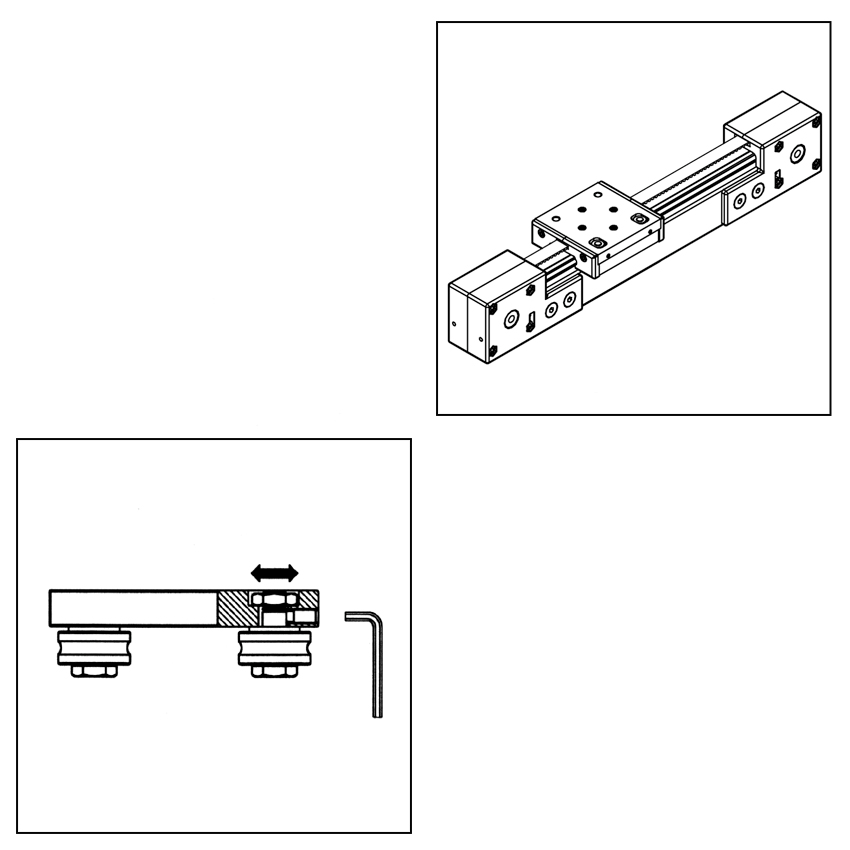

Assembly
- Slip slide onto rail
- Adjust casters with an Allen wrench SW 2.5 free play
- Tighten casters with 15 Nm
- Insert the timing belt into the vehicle and fasten it
- Installed cover caps
