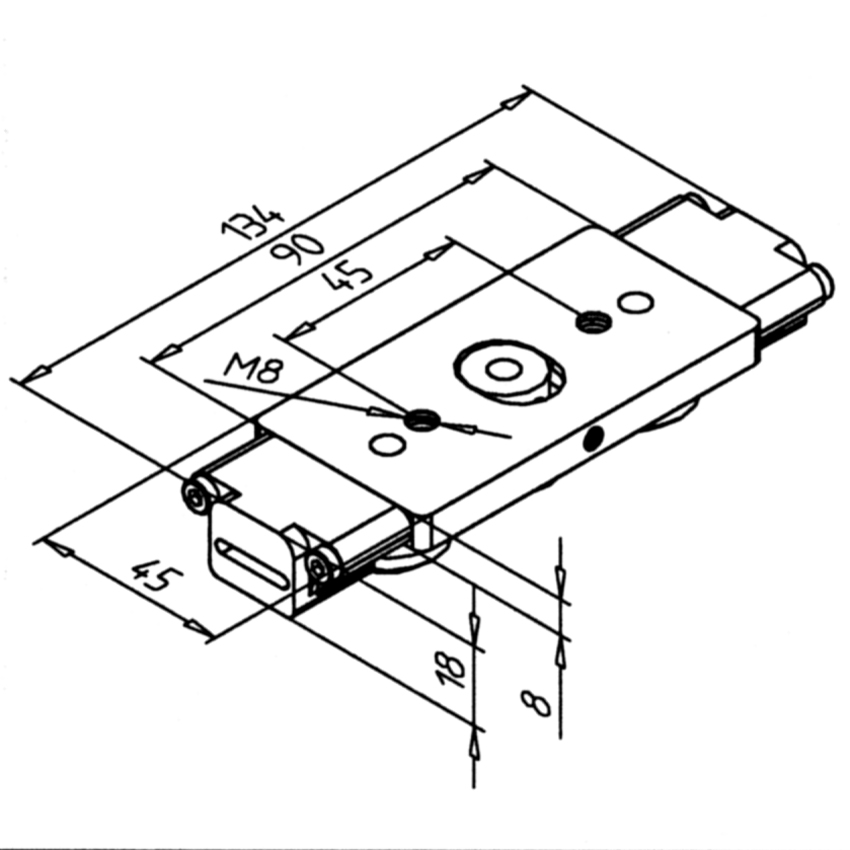

Slide LR 6 Z compact

280520/0
LR 6 Z compact linear slide, designed for high precision and quiet operation of linear guides in industrial applications.
Detailed description
Price: 99,75 € (121,70 € incl. VAT)
In stock in the central warehouse.
Delivery 2-4 weeks.
Add to the cart
Shipping costs
You have additional questions about this product?
Add to the popular

You can add to the product:

Technical data/items supplied

  • Aluminium, anodized E6/EV1
  • Aluminum carriage plate, machined on all sides
  • 3 double row casters LR 6
  • Installed with concentric mounting bolts
  • Stainless version part no. 280524/0
  • Weight = 0.192 kg/piece

Applications

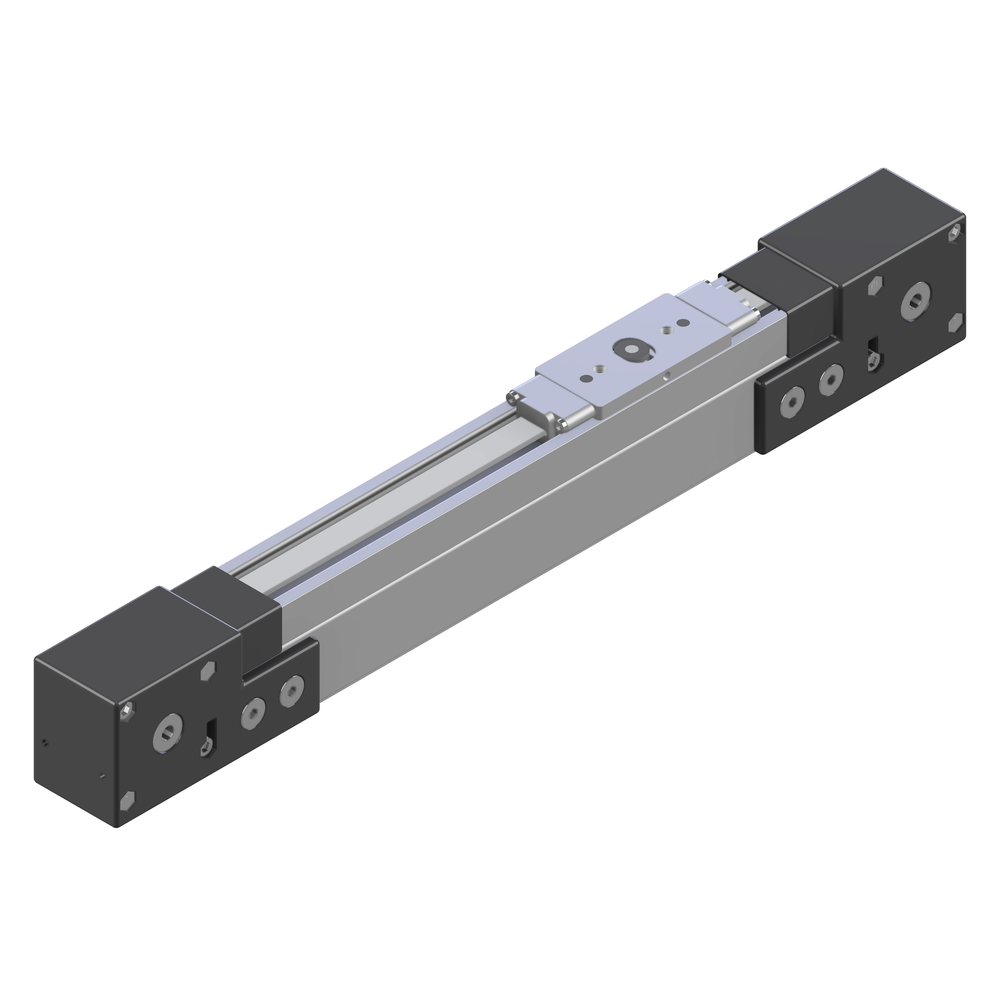

  • MiniTec linear guide systems LR 6
  • Material-handling in areas with shortage of space
  • Fitting rail LR6 compact part no. 280119/0 and Timing belt pulley LR6

Assembly

  • Slip slide onto rail
  • Set the caster wheel with Allen wrench SW2 SW2.5 without play
  • Set up the load to be carried on existing threads M8
