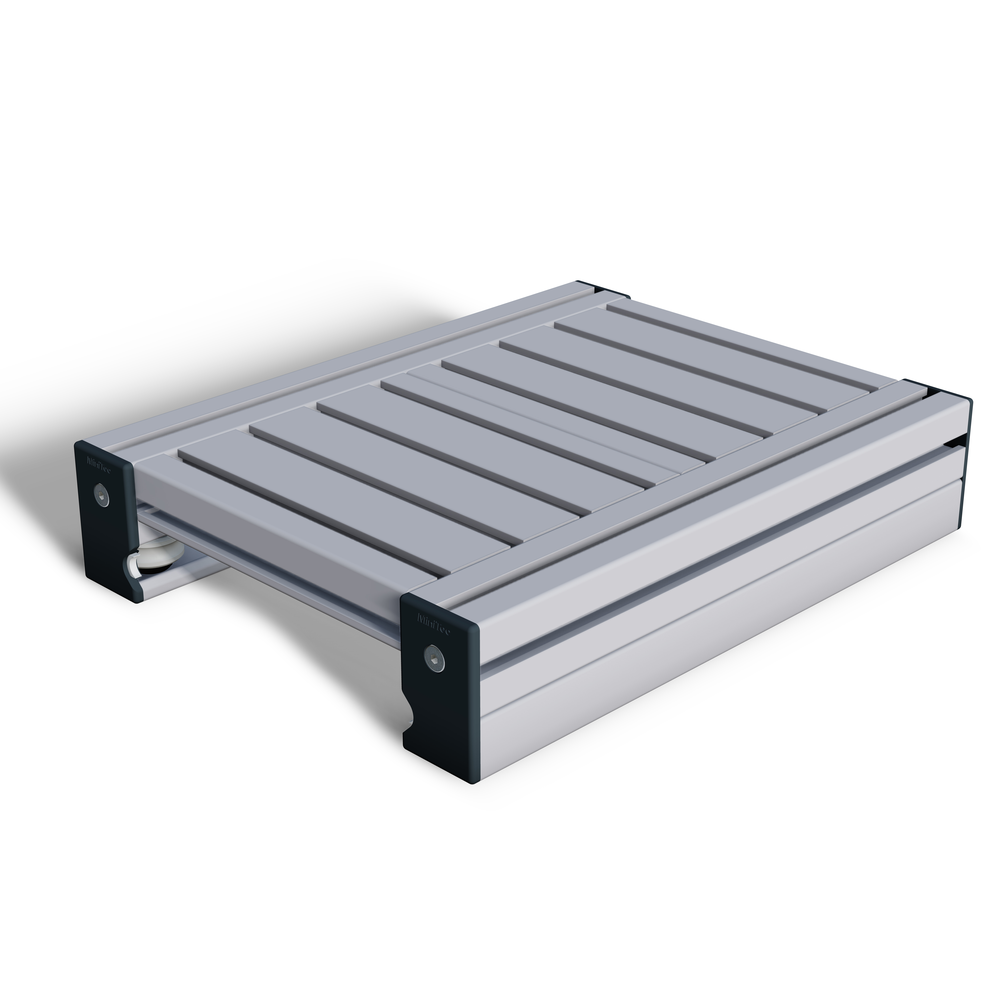

Slide LW 180 with 8 bearings
280087/3
LW 180 linear slide with 8 bearings for exceptional stability, quiet performance, and precise motion of linear guides in demanding industrial applications
Login for partner discounts.
Create an account
but
Login
Add to the popular
You can add to the product:
Technical data/items supplied
- Aluminium, anodized E6/EV1
- Fully mounted carriage

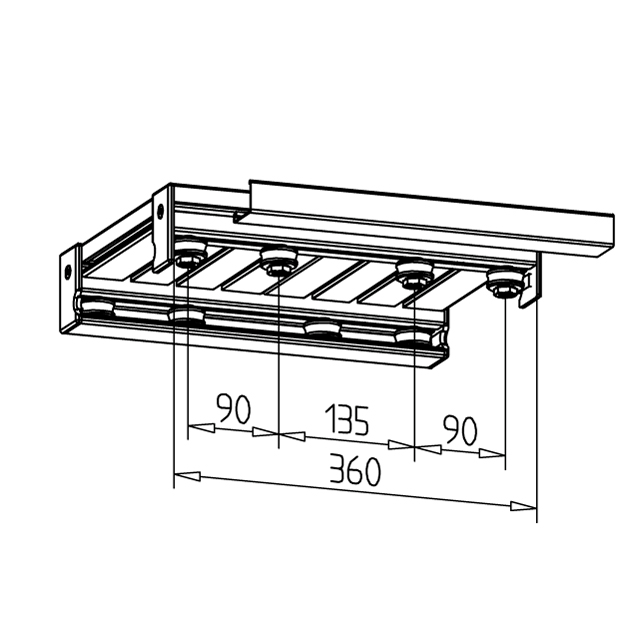

- With 8 concentric and 8 eccentric bearing units
- End caps LR and Cover profiles LR
- Stainless version part no. 280087/1
- Weight = 7.379 kg/piece
Applications
- 1- or multi-axis guides
- Linear robots
- Handling devices
- Measuring devices
- For rails 45 x 180 F and 90 x 180 F
Assembly
- Assemble slide on rail 90 x 180; adjust clearance with eccentric bush
- Install the cover and lubrication system
- Slide clamping unit part no. 280270/0
