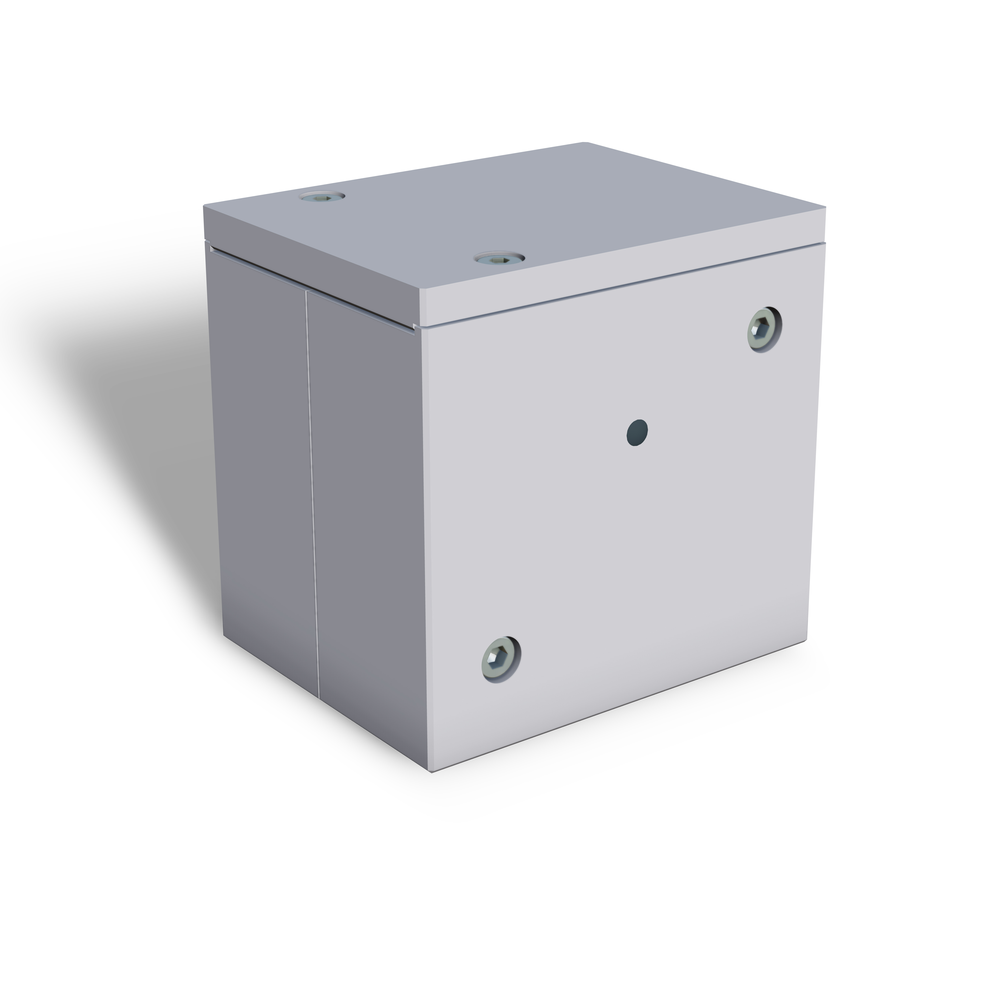

TIMING BELT PULLEY T90
280082/0
Timing belt end piece T90 ensures precise and reliable motion transmission in linear guides.
Login for partner discounts.
Create an account
but
Login
Add to the popular
You can add to the product:
Technical data/items supplied
- Housing 3-piece, anodized aluminum
- Connection elements, steel, galvanised
- Aluminum pulley with stainless steel flanges for timing belt 32AT10
19 teeth, effective diameter 60.48 mm
Required toothed belt length within the deflection 210 mm
max. torque 130 Nm - 2 ball-bearings
- Weight = 2.800 kg/piece
Applications
- All MiniTec linear guides

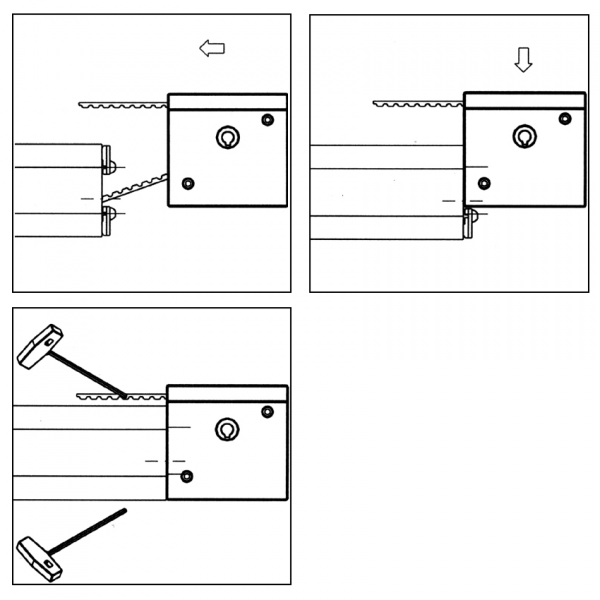

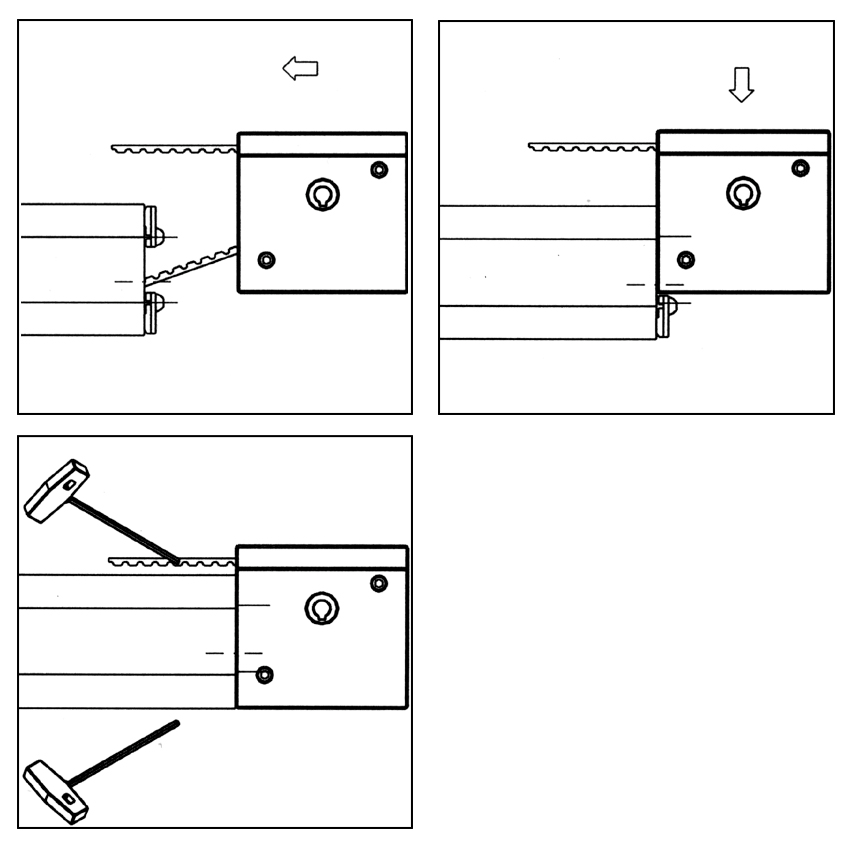

Assembly
- Provide rails with thread M8 at both sides, screw in power-lock fastener part no. 211018/0
- Guide the timing belt through the reverse unit
- Insert pulley unit from top
- Tighten power-lock fastener
- Tighten the timing belt
- For mounting the corrosion-resistant version, use profile connector H part no.211018/1
