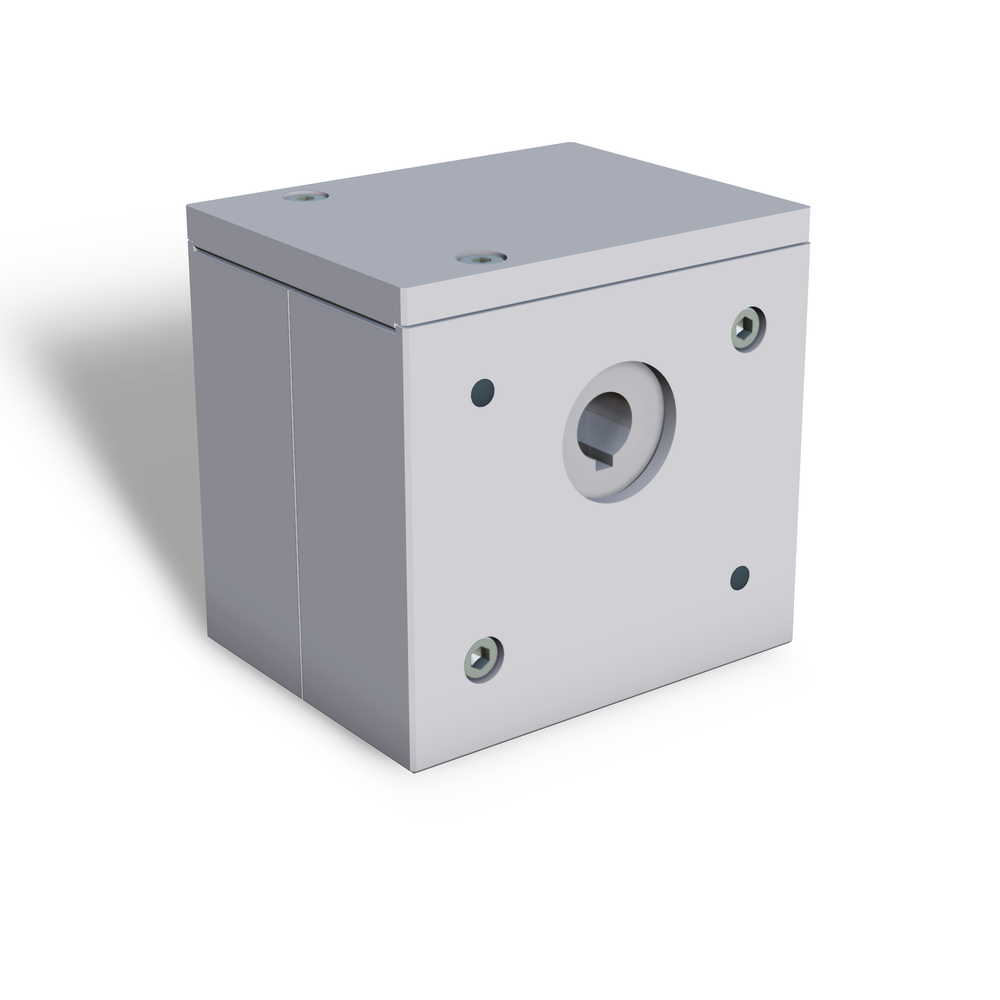

TIMING BELT PULLEY T90 _16 STAINLESS FEATHER KEY 5 MM
280045/4
Timing belt end piece T90 _16 stainless for precise and reliable motion transmission in linear guides.
Login for partner discounts.
Create an account
but
Login
Add to the popular
You can add to the product:
Technical data/items supplied
- Housing 3-piece, anodized aluminum
- Connecting elements in stainless steel
- Aluminum pulley with stainless steel flanges for timing belt 32AT10
19 teeth, effective diameter 60.48 mm
Required toothed belt length within the deflection 210 mm
max. torque 130 Nm - Pulley with bore 16 mm and feather key groove 5 mm
- 2 ball-bearings
- Weight = 2.800 kg/piece
Applications
- All MiniTec linear guides

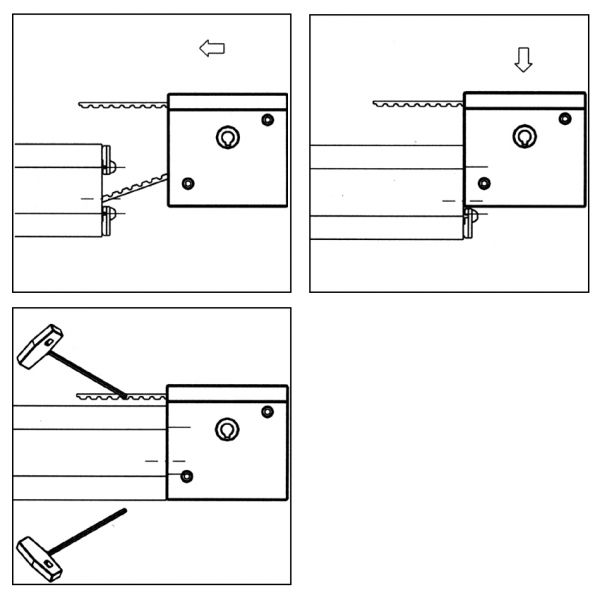

Assembly
- Make thread M8 in both ends of the rail, screw in power-lock fastener part. no. 211018/1
- Guide the timing belt through the reverse unit
- Insert pulley unit from top
- Tighten power-lock fastener
- Tighten the timing belt
