Timing belt pulley T90 _11 stainless

CAD download

PDF data sheet

3D view

Timing belt pulley T90 _11 stainless

280045/2
Timing belt end piece T90 _11 stainless for precise and reliable motion transmission in linear guides.
Detailed description
Price: 383,25 € (467,57 € incl. VAT)
In stock in the central warehouse.
Delivery 2-4 weeks.
Add to the cart
Shipping costs
You have additional questions about this product?
Add to the popular

You can add to the product:

Technical data/items supplied

  • Housing 3-piece, anodized aluminum
  • Connecting elements in stainless steel
  • Aluminum pulley with stainless steel flanges for timing belt 32AT10
    19 teeth, effective diameter 60.48 mm
    Required toothed belt length within the deflection 210 mm
    max. torque 130 Nm
  • Pulley with bore 14 mm and feather key groove 5 mm
  • 2 ball-bearings
  • Weight = 2.800 kg/piece

Applications

  • All MiniTec linear guides

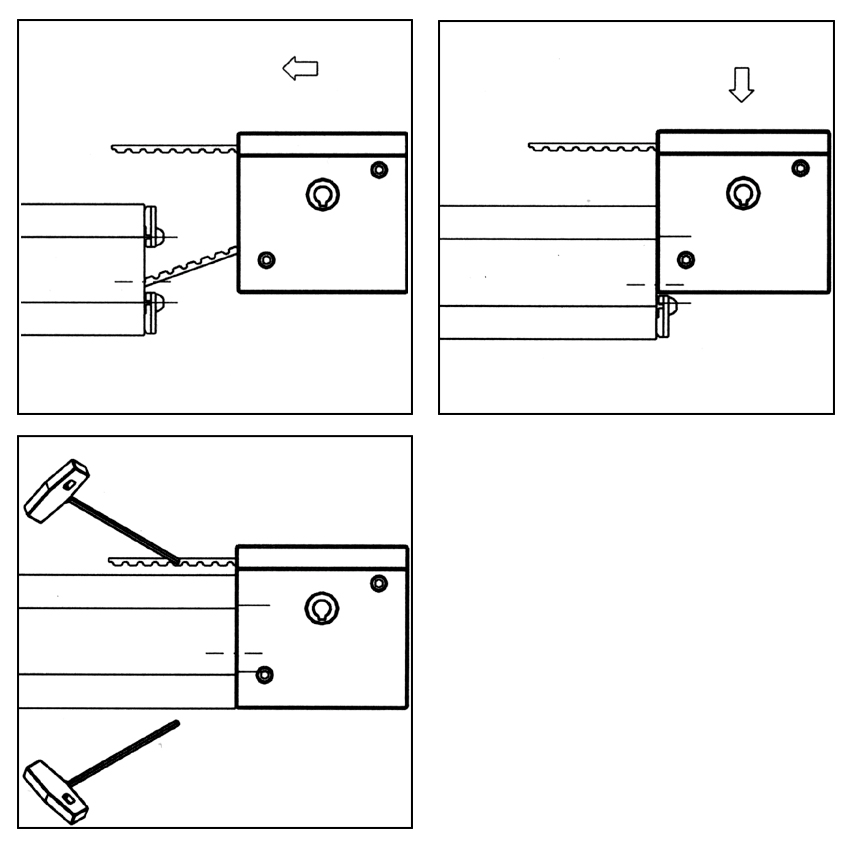

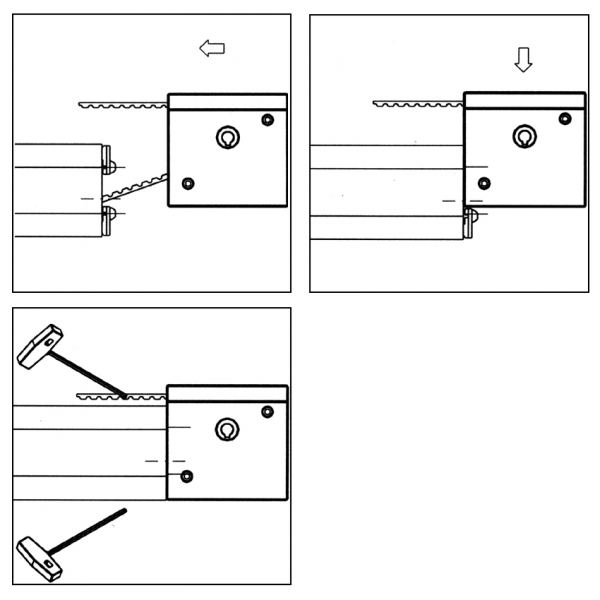

Assembly

  • Make thread M8 in both ends of the rail, screw in power-lock fastener part. no. 211018/1
  • Guide the timing belt through the reverse unit
  • Insert pulley unit from top
  • Tighten power-lock fastener
  • Tighten the timing belt
