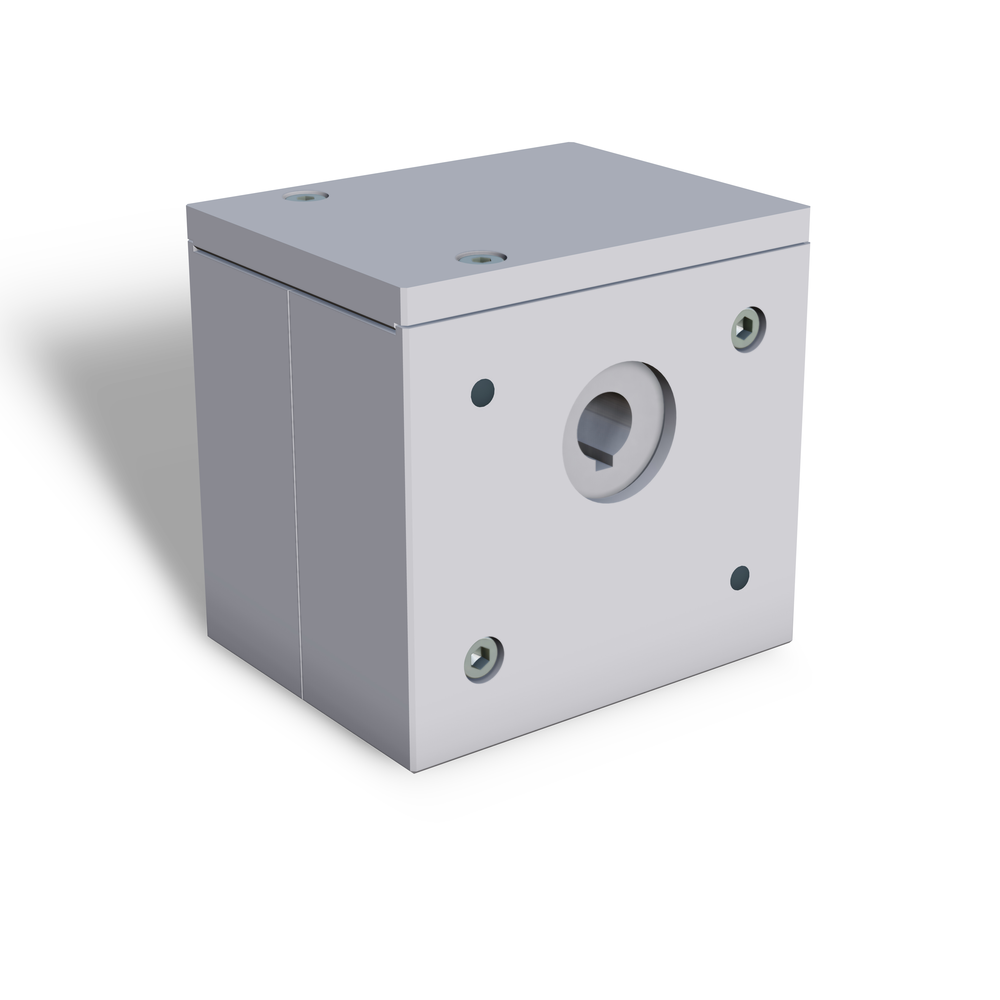

TIMING BELT PULLEY T90 _16 FEATHER KEY 5 MM

280082/4
Timing belt end piece T90 _16 ensures precise and reliable motion transmission in linear guides.
Detailed description
Price: 253,70 € (309,51 € incl. VAT)
In stock in the central warehouse.
Delivery 2-4 weeks.
Add to the cart
Shipping costs
You have additional questions about this product?
Add to the popular

You can add to the product:

Technical data/items supplied

  • Housing 3-piece, anodized aluminum
  • Connection elements, steel, galvanised
  • Aluminum pulley with stainless steel flanges for timing belt 32AT10
    19 teeth, effective diameter 60.48 mm
    Required toothed belt length within the deflection 210 mm
    max. torque 130 Nm
  • Pulley with bore 16 mm and feather key groove 5 mm
  • 2 ball-bearings
  • Weight = 2.800 kg/piece

Applications

  • All MiniTec linear guides

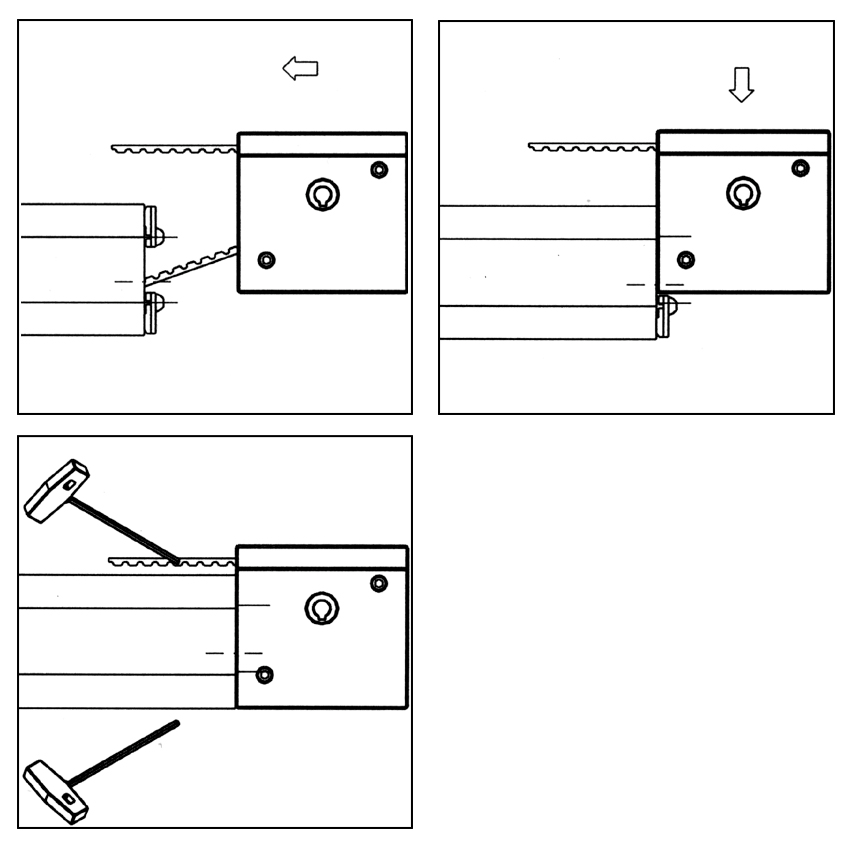

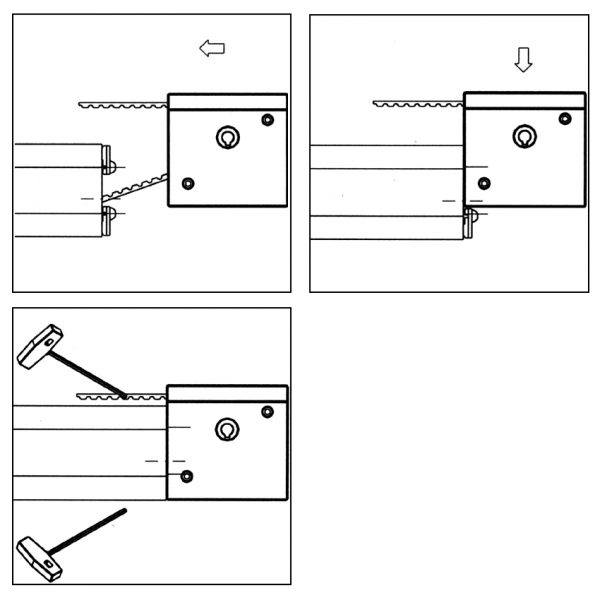

Assembly

  • Provide rails with thread M8 at both sides, screw in power-lock fastener part no. 211018/0
  • Guide the timing belt through the reverse unit
  • Insert pulley unit from top
  • Tighten power-lock fastener
  • Tighten the timing belt
  • For mounting the corrosion-resistant version, use profile connector H part no.211018/1
